AMD Navi 22
Navi 22

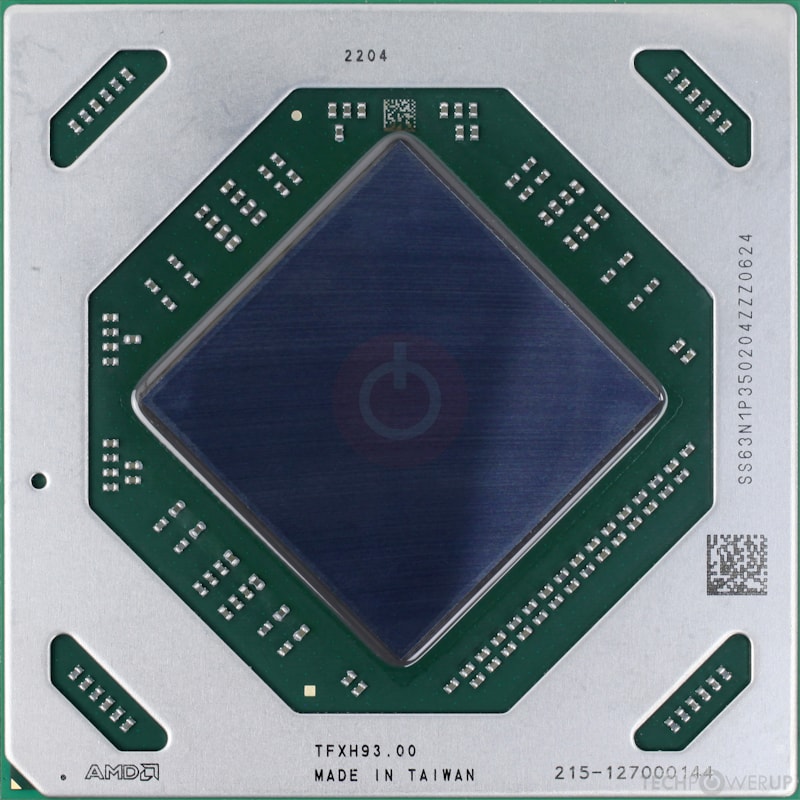

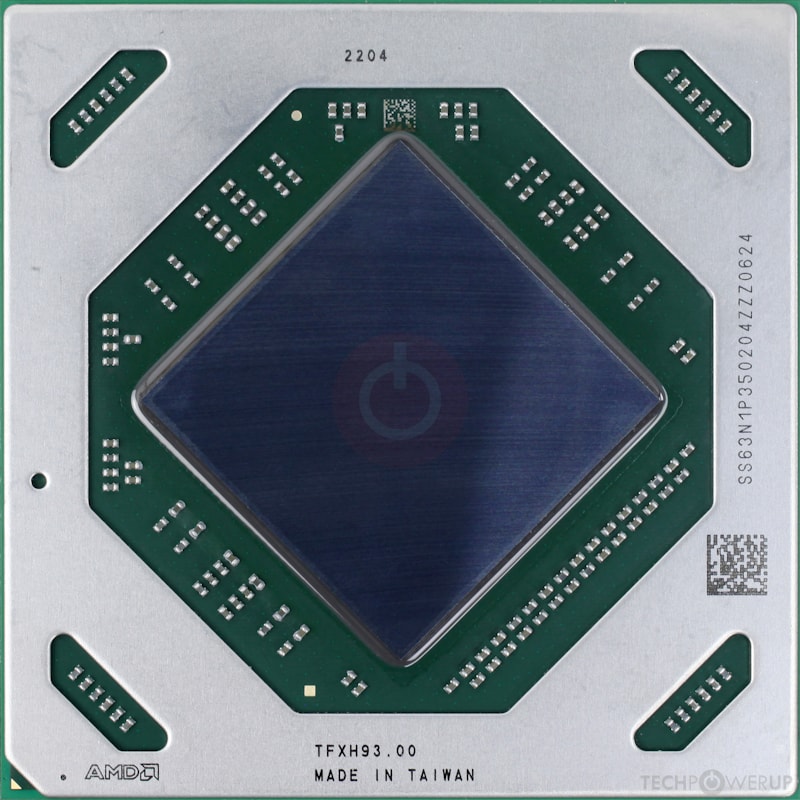

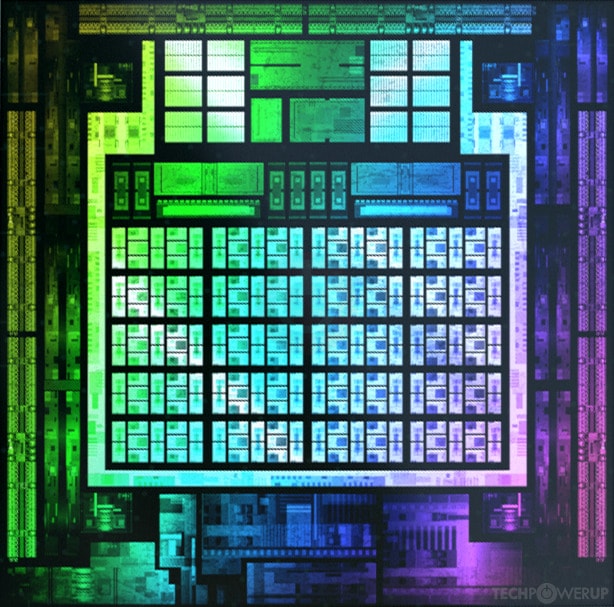

CGI Die Shot
Locuza

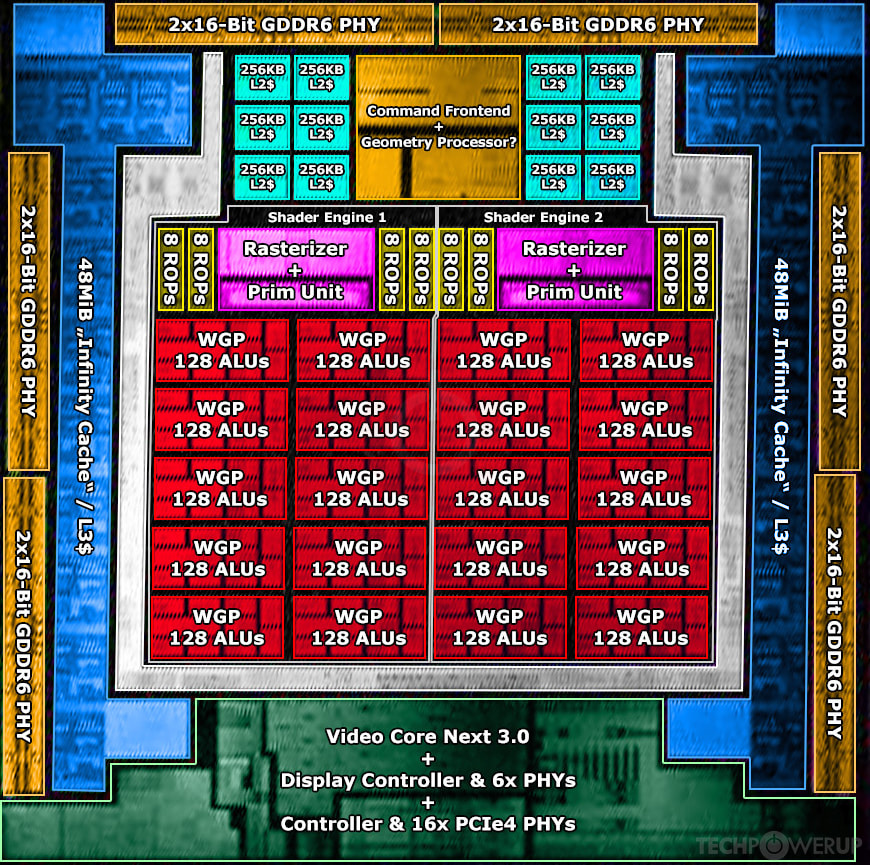

Block Diagram
AMD's Navi 22 GPU uses the RDNA 2.0 architecture and is made using a 7 nm production process at TSMC. With a die size of 335 mm² it is a large chip. Navi 22 supports DirectX 12 Ultimate (Feature Level 12_2). For GPU compute applications, OpenCL version 2.1 can be used. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. It features 2560 shading units, 160 texture mapping units and 64 ROPs. The GPU also contains 40 raytracing acceleration cores.
Further reading:
RDNA Whitepaper
Graphics Processor
- GPU Name
- Navi 22
- Architecture
- RDNA 2.0
- Foundry
- TSMC
- Process Size
- 7 nm
- Transistors
- unknown
- Die Size
- 335 mm²
- Released
- Mar 3rd, 2021
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 2.1
- Vulkan
- 1.2
- Shader Model
- 6.5
- Compute
- GFX10.3
- ROCm
- No
Render Config
- Shading Units
- 2560
- TMUs
- 160
- ROPs
- 64
- Compute Units
- 40
- RT Cores
- 40
- L0 Cache
- 32 KB per WGP
- L1 Cache
- 128 KB per Array
- L2 Cache
- 3072 KB
- Max. TDP
- 230 W
All RDNA 2.0 GPUs
AMD GPU Architecture History
Graphics cards using the AMD Navi 22 GPU
| Name | Chip | Memory | Shaders | TMUs | ROPs | Base Clock | Boost Clock | Memory Clock |
|---|---|---|---|---|---|---|---|---|
AMD Radeon RX 6700 XT
|
Navi 22 XT | 12 GB | 2560 | 160 | 64 | 2321 MHz | 2581 MHz | 2000 MHz |
| AMD Radeon RX 6700 | Navi 22 XTL | 6 GB | 2304 | 144 | 64 | 1489 MHz | 2250 MHz | 2000 MHz |
| AMD Radeon RX 6700M | Navi 22 | 12 GB | 2304 | 144 | 64 | 1489 MHz | 2250 MHz | 2000 MHz |
Navi 22 GPU Notes
| Architecture Codename: Navi Codename: Navy Flounder Graphics/Compute: GFX10 (gfx1031) Display Core Next: 3.0 Video Core Next: 3.0 |
