NVIDIA GeForce GTX 580M

Graphics Processor
GF114
Cores
384
TMUs
64
ROPs
32
Memory Size
2 GB
Memory Type
GDDR5
Bus Width
256 bit
The GeForce GTX 580M was a mobile graphics chip by NVIDIA, launched in June 2011. Built on the 40 nm process, and based on the GF114 graphics processor, in its N12E-GTX2-A1 variant, the chip supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_0, which can be problematic with newer DirectX 12 titles. The GF114 graphics processor is a large chip with a die area of 332 mm² and 1,950 million transistors. It features 384 shading units, 64 texture mapping units, and 32 ROPs, . NVIDIA has paired 2,048 MB GDDR5 memory with the GeForce GTX 580M, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 620 MHz, memory is running at 750 MHz.

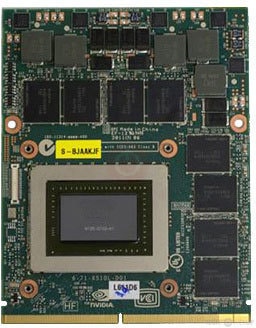

Being a mxm module card, the NVIDIA GeForce GTX 580M does not require any additional power connector, its power draw is rated at 100 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.

Graphics Processor

GPU Name
GF114
GPU Variant
N12E-GTX2-A1
Architecture
Fermi 2.0
Foundry
TSMC
Process Size
40 nm
Transistors
1,950 million
Die Size
332 mm²

Mobile Graphics

Release Date
Jun 28th, 2011
Generation
GeForce 500M
Production
End-of-life
Bus Interface
MXM-B (3.0)
Reviews
1 in our database

Relative Performance

7%
GeForce 210
10%
GeForce 9400 GT
12%
Radeon HD 4550
15%
Radeon HD 5450
18%
Radeon HD 6450
19%
GeForce GT 520
23%
GeForce GT 220
30%
GeForce GT 430
31%
Radeon HD 5570
33%
Radeon HD 4670
35%
GeForce GT 440
36%
GeForce GT 240
41%
GeForce 9600 GT
44%
Radeon HD 5670
47%
GeForce GT 640
48%
GeForce 9800 GT
50%
Radeon HD 6670
52%
Radeon HD 4830
56%
Radeon HD 4770
59%
Radeon HD 4850
60%
GeForce GTS 250
62%
GeForce GTS 450
64%
Radeon HD 5750
73%
Radeon HD 7750
73%
Radeon HD 5770
75%
GeForce GTX 260
76%
Radeon HD 4870
76%
Radeon Vega 8
77%
GeForce GTX 550 Ti
77%
GeForce GTX 650
82%
Radeon HD 5830
86%
Radeon HD 6790
87%
Radeon HD 4890
91%
GeForce GTX 460
91%
Radeon RX Vega 11
92%
GeForce GT 1030
93%
GeForce GTX 275
93%
Radeon HD 7770 GHz Edition
94%
GeForce GTX 280
95%
GeForce GTX 465
100%
GeForce GTX 580M
100%
Radeon HD 6850
102%
GeForce GTX 285
109%
Radeon HD 5850
111%
GeForce GTX 650 Ti
111%
Radeon HD 7790
116%
Radeon RX 550
116%
GeForce GTX 470
121%
Radeon HD 6870
129%
Radeon HD 5870
133%
GeForce GTX 560 Ti
133%
Radeon HD 4870 X2
136%
GeForce GTX 750 Ti
136%
Radeon HD 6950
141%
GeForce GTX 295
143%
GeForce GTX 650 Ti Boost
144%
Radeon HD 7850
146%
GeForce GTX 480
153%
Radeon HD 6970
156%
Radeon R7 265
159%
Radeon RX 460
159%
Radeon R7 370
159%
GeForce GTX 660
160%
GeForce GTX 570
162%
Radeon RX 560
173%
GeForce GTX 950
174%
Radeon HD 7870 GHz Edition
178%
Radeon R9 270X
180%
GeForce GTX 660 Ti
181%
GeForce GTX 580
183%
GeForce GTX 1050
183%
Radeon HD 7950
187%
Radeon HD 5970
192%
GeForce GTX 760
207%
GeForce GTX 670
212%
GeForce GTX 960
217%
Radeon R9 380
219%
Radeon R9 285
221%
Radeon HD 7970
223%
GeForce GTX 680
228%
GeForce GTX 1050 Ti
234%
GeForce GTX 770
240%
Radeon HD 6990
246%
Radeon R9 280X
249%
GeForce GTX 590
249%
Radeon HD 7970 GHz Edition
276%
GeForce GTX 780
286%
GeForce GTX 1650
304%
Radeon RX 470
308%
Radeon R9 290
325%
Radeon RX 570
329%
Radeon R9 390
330%
Radeon R9 290X
335%
GeForce GTX 970
339%
GeForce GTX TITAN
344%
GeForce GTX 780 Ti
349%
Radeon R9 390X
350%
Radeon HD 7990
352%
Radeon RX 480
355%
GeForce GTX 690
364%
GeForce GTX 1060 6 GB
369%
Radeon RX 5500 OEM
374%
Radeon RX 580
377%
Radeon RX 5500 XT
382%
GeForce GTX 980
385%
GeForce GTX 1650 SUPER
387%
Radeon R9 FURY
404%
Radeon RX 590
425%
Radeon R9 295X2
428%
GeForce GTX 1660
433%
Radeon R9 FURY X
440%
GeForce GTX 980 Ti
451%
GeForce GTX TITAN X
480%
GeForce GTX 1660 SUPER
491%
GeForce GTX 1660 Ti
491%
GeForce GTX 1070
523%
Radeon RX Vega 56
554%
GeForce GTX 1070 Ti
570%
Radeon RX Vega 64
578%
GeForce GTX 1080
578%
GeForce RTX 2060
602%
Radeon RX 5700
649%
GeForce RTX 2060 SUPER
673%
GeForce RTX 2070
689%
Radeon RX 5700 XT
697%
Radeon VII
715%
TITAN X Pascal
736%
GeForce GTX 1080 Ti
744%
GeForce RTX 2070 SUPER
792%
GeForce RTX 2080
839%
GeForce RTX 2080 SUPER
926%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
620 MHz
Shader Clock
1240 MHz
Memory Clock
750 MHz
3000 MHz effective

Memory

Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
256 bit
Bandwidth
96.00 GB/s

Render Config

Shading Units
384
TMUs
64
ROPs
32
SM Count
8
L1 Cache
64 KB (per SM)
L2 Cache
512 KB

Theoretical Performance

Pixel Rate
9.920 GPixel/s
Texture Rate
39.68 GTexel/s
FP32 (float) performance
952.3 GFLOPS
FP64 (double) performance
79.36 GFLOPS (1:12)

Board Design

Slot Width
MXM Module
TDP
100 W
Outputs
No outputs
Power Connectors
None
Board Number
P1314

Graphics Features

DirectX
12 (11_0)
OpenGL
4.6
OpenCL
1.1
Vulkan
N/A
CUDA
2.1
Shader Model
5.1
