NVIDIA GeForce GTX TITAN X

GM200
Graphics Processor
3072
Cores
192
TMUs
96
ROPs
12288 MB
Memory Size
GDDR5
Memory Type
384 bit
Bus Width

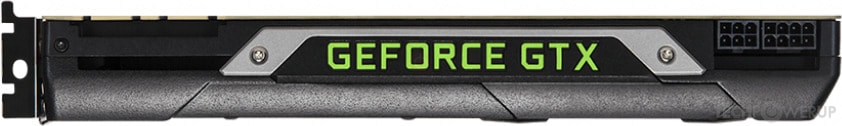

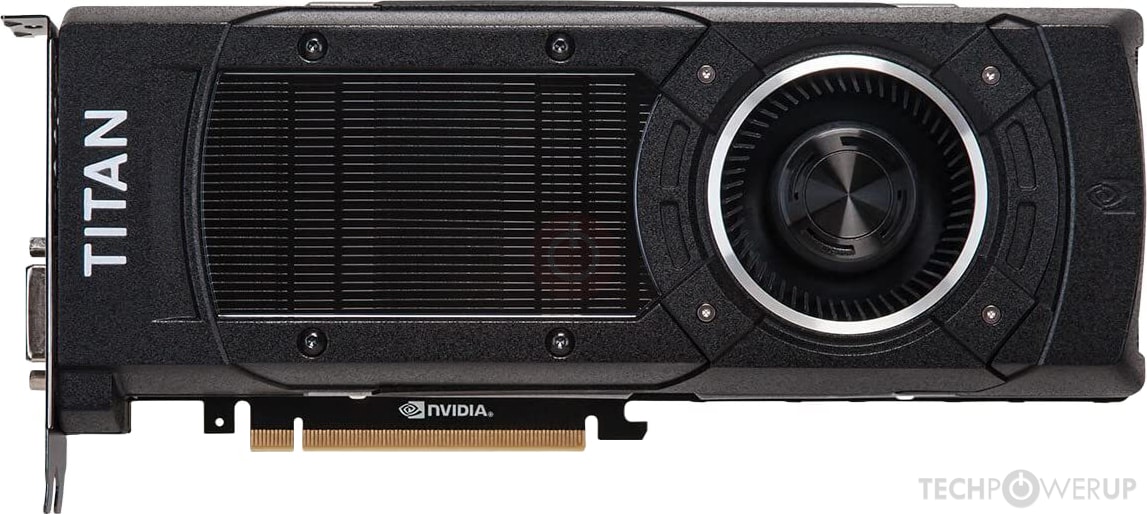

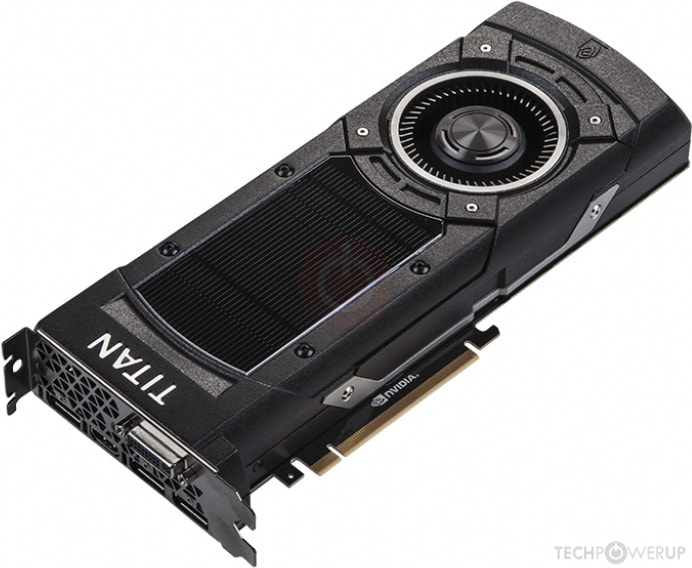

NVIDIA GeForce GTX TITAN X Photo NVIDIA GM200 Photo
The GeForce GTX TITAN X is a enthusiast-class graphics card by NVIDIA, launched in March 2015. Built on the 28 nm process, and based on the GM200 graphics processor, in its GM200-400-A1 variant, the card supports DirectX 12.0. The GM200 graphics processor is a large chip with a die area of 601 mm² and 8,000 million transistors. It features 3072 shading units, 192 texture mapping units and 96 ROPs. NVIDIA has placed 12,288 MB GDDR5 memory on the card, which are connected using a 384-bit memory interface. The GPU is operating at a frequency of 1000 MHz, which can be boosted up to 1089 MHz, memory is running at 1753 MHz.
Being a dual-slot card, the NVIDIA GeForce GTX TITAN X draws power from 1x 6-pin + 1x 8-pin power connectors, with power draw rated at 250 W maximum. Display outputs include: 1x DVI, 1x HDMI, 3x DisplayPort. GeForce GTX TITAN X is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 999 US Dollars.

Graphics Processor

GPU Name
GM200
GPU Variant
GM200-400-A1
Architecture
Maxwell 2.0
Process Size
28 nm
Transistors
8,000 million
Die Size
601 mm²

Graphics Card

Release Date
Mar 17th, 2015
Generation
GeForce 900
Production
Active
Launch Price
999 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

2%
2%
2%
3%
4%
4%
5%
6%
6%
7%
7%
8%
9%
9%
10%
10%
11%
11%
12%
12%
13%
13%
13%
15%
16%
16%
16%
16%
16%
16%
17%
18%
18%
19%
19%
20%
20%
20%
20%
20%
21%
22%
23%
24%
24%
25%
25%
25%
27%
28%
28%
29%
29%
30%
30%
30%
31%
32%
33%
34%
34%
34%
34%
36%
37%
38%
38%
38%
39%
39%
39%
39%
41%
44%
45%
46%
46%
47%
47%
48%
50%
51%
52%
53%
53%
58%
64%
65%
69%
70%
71%
72%
72%
73%
74%
74%
74%
75%
79%
81%
82%
82%
90%
91%
93%
100%
GeForce GTX TITAN X
110%
114%
122%
122%
129%
151%
155%
169%
192%
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
1000 MHz
Boost Clock
1089 MHz
Memory Clock
1753 MHz
7012 MHz effective

Memory

Memory Size
12288 MB
Memory Type
GDDR5
Memory Bus
384 bit
Bandwidth
336.6 GB/s

Render Config

Shading Units
3072
TMUs
192
ROPs
96
SMM Count
24

Theoretical Performance

Pixel Rate
104.5 GPixel/s
Texture Rate
209.1 GTexel/s
FP32 (float) performance
6,691 GFLOPS
FP64 (double) performance
209.1 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Length
10.5 inches
267 mm
TDP
250 W

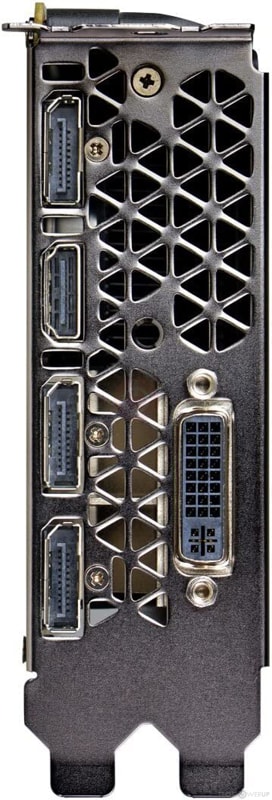

Outputs
1x DVI
1x HDMI
3x DisplayPort
Power Connectors
1x 6-pin + 1x 8-pin
Board Number
PG600

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.82
CUDA
5.2
Shader Model
6.1

GM200 GPU Notes

PureVideo HD: VP6
VDPAU: Feature Set E

Retail boards based on this design (16)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
Colorful GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
EVGA GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
EVGA GTX TITAN X Hybrid 1152 MHz 1241 MHz 1753 MHz
EVGA GTX TITAN X Hydro Copper 1152 MHz 1241 MHz 1753 MHz
EVGA GTX TITAN X Superclocked 1127 MHz 1216 MHz 1753 MHz
Gainward GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
GALAX GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
GIGABYTE GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
GIGABYTE GTX TITAN X XTREME 1165 MHz 1266 MHz 1753 MHz
Inno3D GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
Inno3D iChill GTX TITAN X Black 1102 MHz 1190 MHz 1753 MHz
MSI GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
Palit GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
ZOTAC GTX TITAN X 1000 MHz 1089 MHz 1753 MHz
ZOTAC GTX TITAN X ArticStorm 1026 MHz 1114 MHz 1753 MHz
