NVIDIA GeForce RTX 2070

TU106
Graphics Processor
2304
Cores
144
TMUs
64
ROPs
8 GB
Memory Size
GDDR6
Memory Type
256 bit
Bus Width

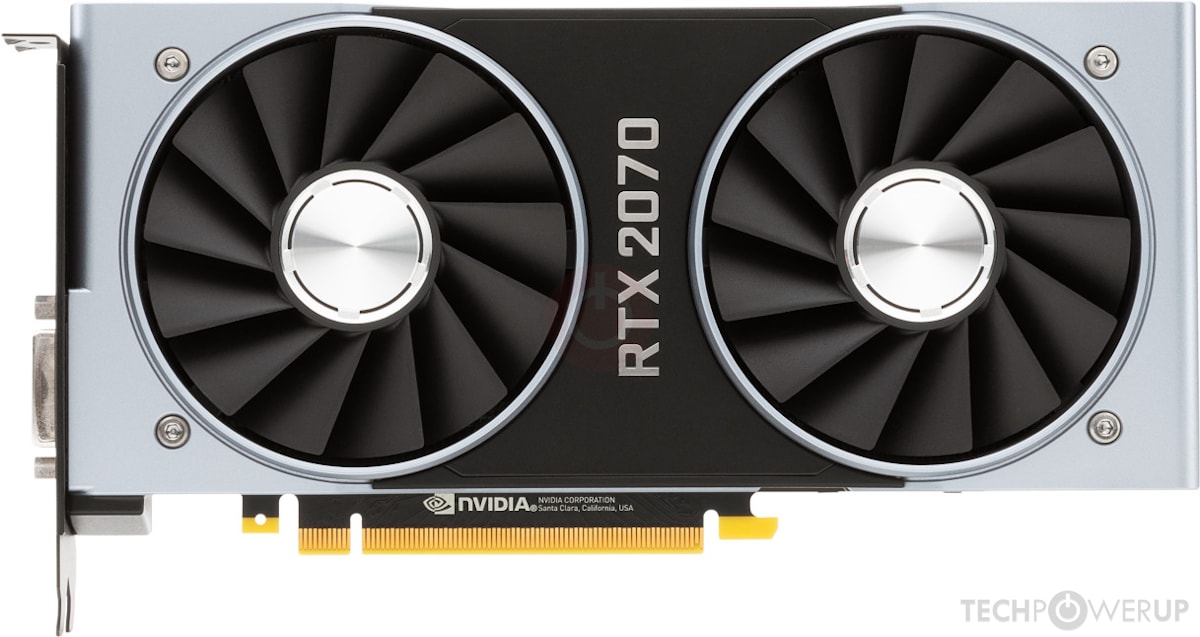

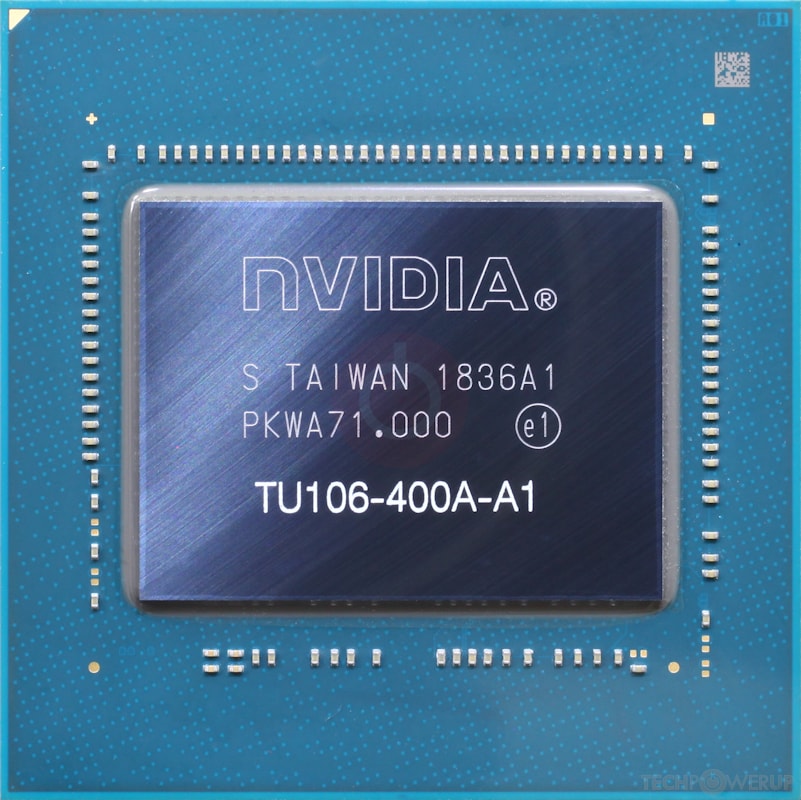

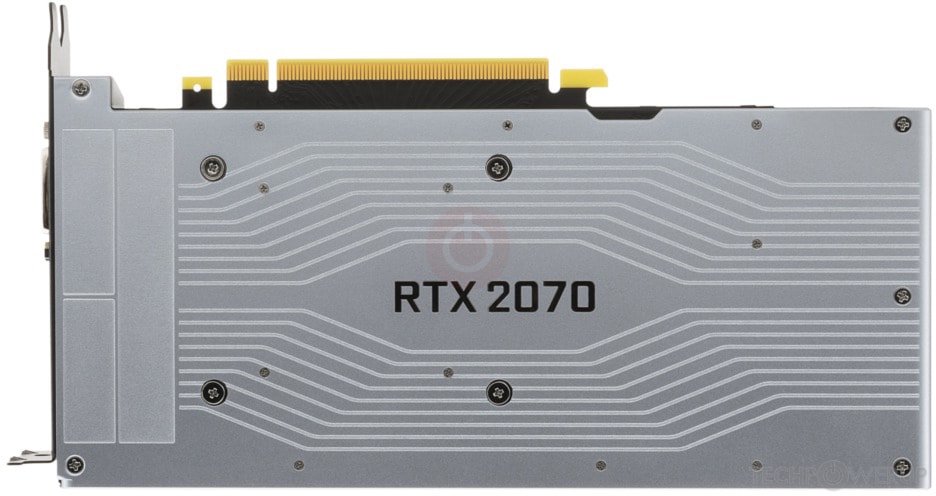

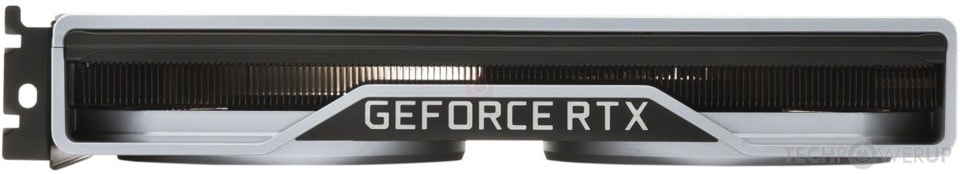

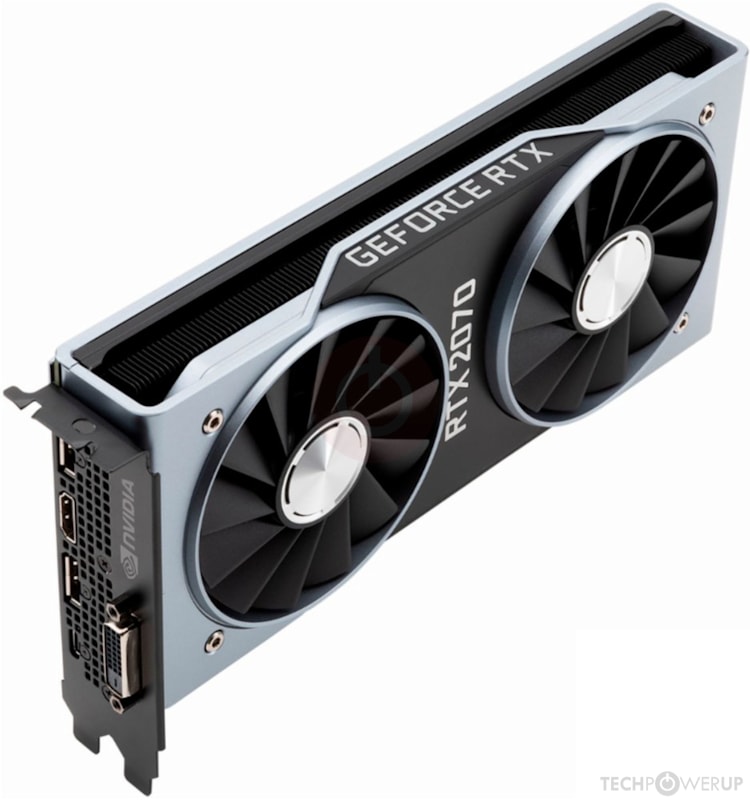

NVIDIA GeForce RTX 2070 Photo NVIDIA TU106 Photo
The GeForce RTX 2070 is a high-end graphics card by NVIDIA, launched in October 2018. Built on the 12 nm process, and based on the TU106 graphics processor, in its TU106-400A-A1 variant, the card supports DirectX 12.0. The TU106 graphics processor is a large chip with a die area of 445 mm² and 10,800 million transistors. It features 2304 shading units, 144 texture mapping units and 64 ROPs. Also included are 288 tensor cores which help improve the speed of machine learning applications. The card also has 36 raytracing acceleration cores. NVIDIA has placed 8,192 MB GDDR6 memory on the card, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1410 MHz, which can be boosted up to 1620 MHz, memory is running at 1750 MHz.
Being a dual-slot card, the NVIDIA GeForce RTX 2070 draws power from 1x 8-pin power connectors, with power draw rated at 175 W maximum. Display outputs include: 1x DVI, 1x HDMI, 2x DisplayPort, 1x USB Type-C. GeForce RTX 2070 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 229 mm in length, and features a dual-slot cooling solution. Its price at launch was 499 US Dollars.

Graphics Processor

GPU Name
TU106
GPU Variant
TU106-400A-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
10,800 million
Die Size
445 mm²

Graphics Card

Release Date
Oct 17th, 2018
Generation
GeForce 2000
Production
Active
Launch Price
499 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

1%
1%
2%
2%
3%
3%
3%
4%
4%
5%
5%
5%
6%
6%
7%
7%
7%
8%
8%
9%
9%
9%
9%
11%
11%
11%
11%
11%
11%
11%
12%
13%
13%
13%
13%
14%
14%
14%
14%
14%
15%
15%
16%
16%
16%
17%
17%
18%
19%
19%
20%
20%
20%
21%
21%
21%
21%
22%
23%
23%
23%
23%
23%
25%
26%
26%
26%
27%
27%
27%
27%
27%
28%
30%
31%
32%
32%
32%
33%
34%
34%
35%
36%
37%
37%
40%
45%
45%
48%
48%
49%
50%
50%
50%
51%
51%
52%
52%
55%
56%
57%
57%
62%
63%
65%
69%
76%
79%
85%
85%
90%
100%
GeForce RTX 2070
105%
108%
117%
133%
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
1410 MHz
Boost Clock
1620 MHz
Memory Clock
1750 MHz
14000 MHz effective

Memory

Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
256 bit
Bandwidth
448.0 GB/s

Render Config

Shading Units
2304
TMUs
144
ROPs
64
SM Count
36
Tensor Cores
288
RT Cores
36

Theoretical Performance

Pixel Rate
103.7 GPixel/s
Texture Rate
233.3 GTexel/s
FP16 (half) performance
14,930 GFLOPS (2:1)
FP32 (float) performance
7,465 GFLOPS
FP64 (double) performance
233.3 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Length
9 inches
229 mm
TDP
175 W

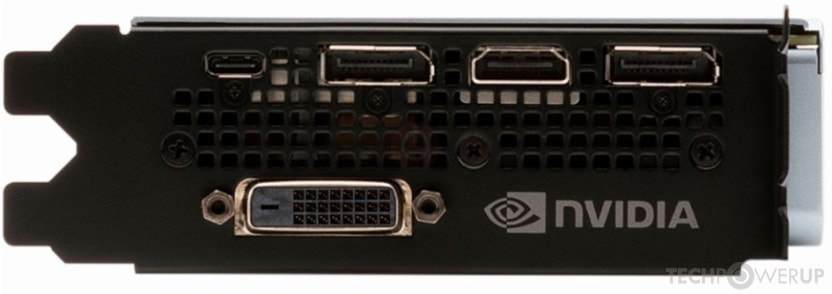

Outputs
1x DVI
1x HDMI
2x DisplayPort
1x USB Type-C

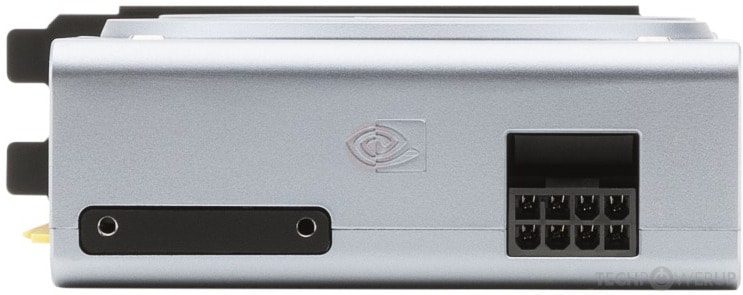

Power Connectors
1x 8-pin

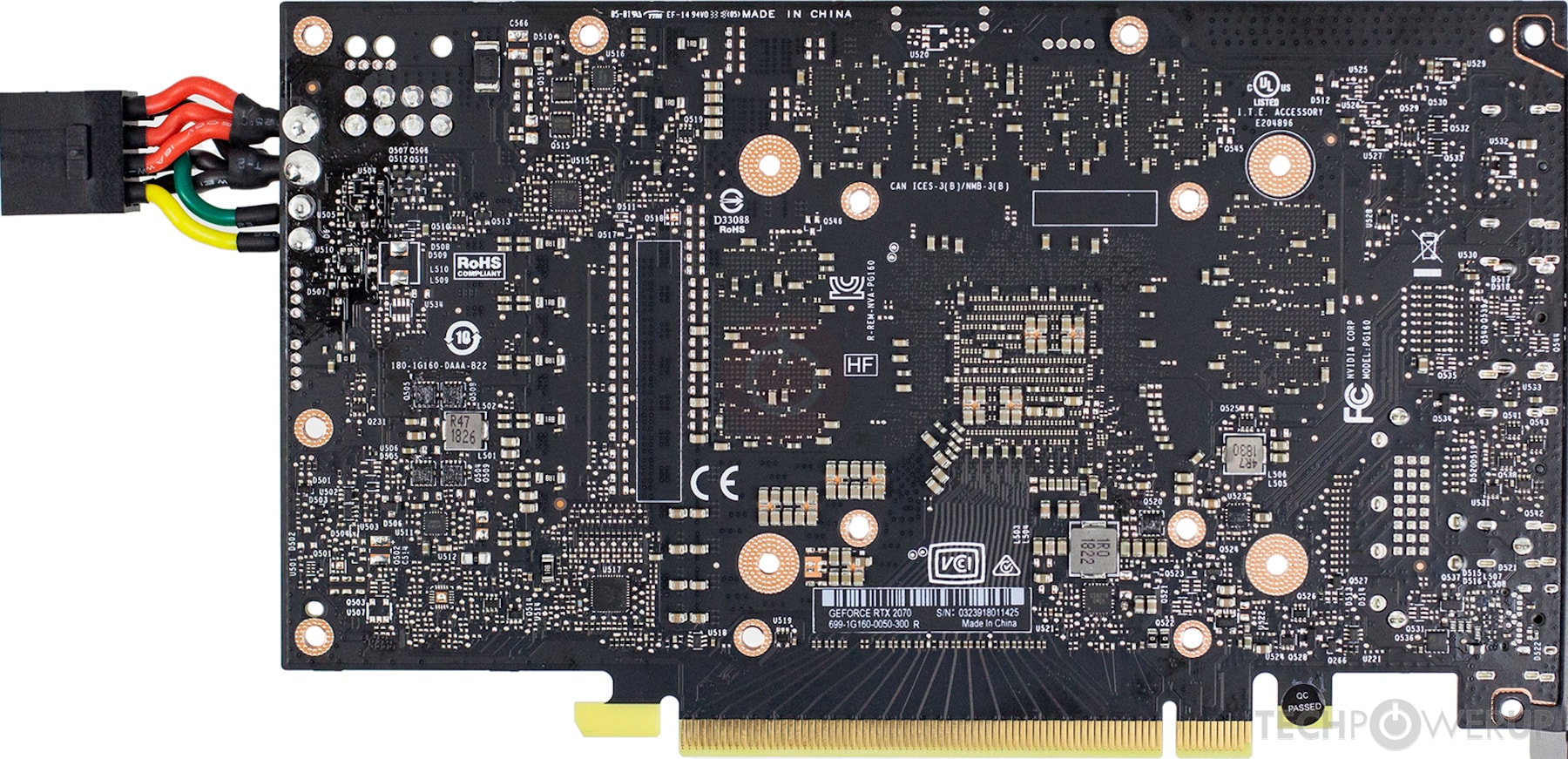

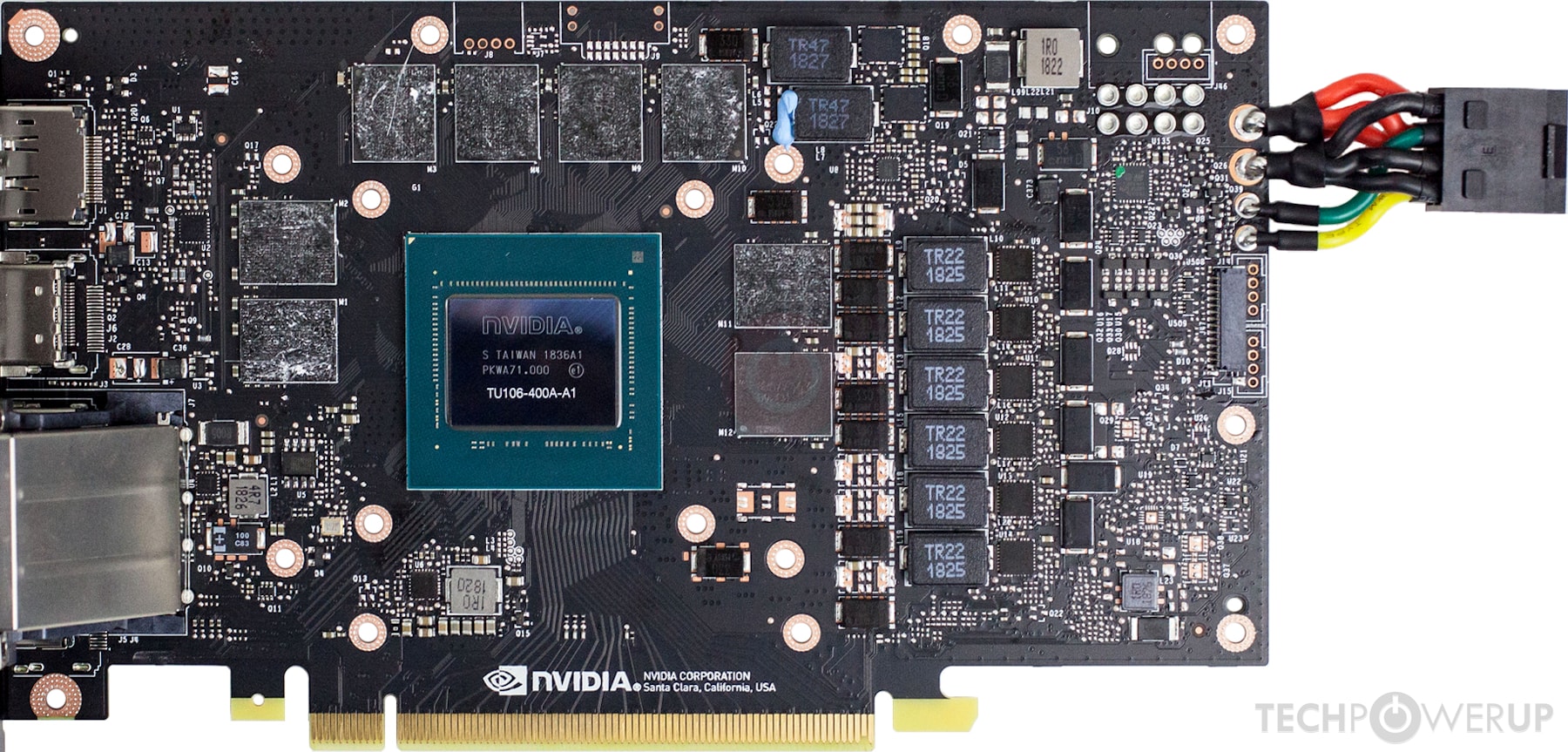

Board Number
PG160 SKU 52

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.92
CUDA
7.5
Shader Model
6.3

Card Notes

TU106-400-A1 are Normal Chips (no factory OC permitted).
TU106-400A-A1 are Binned Chips (factory OC permitted).
Both support manual overclocking

TU106 GPU Notes

PureVideo HD: VP9
VDPAU: Feature Set I

Retail boards based on this design (116)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS DUAL RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.53 inches/267 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS DUAL RTX 2070 ADVANCED 1410 MHz 1635 MHz 1750 MHz 10.53 inches/267 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS DUAL RTX 2070 OC 1410 MHz 1710 MHz 1750 MHz 10.53 inches/267 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS TURBO RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.54 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS ROG STRIX RTX 2070 GAMING 1410 MHz 1620 MHz 1750 MHz 11.83 inches/300 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS ROG STRIX RTX 2070 GAMING ADVANCED 1410 MHz 1650 MHz 1750 MHz 11.83 inches/300 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ASUS ROG STRIX RTX 2070 GAMING OC 1410 MHz 1815 MHz 1750 MHz 11.83 inches/300 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ATUM GENESIS RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.04 inches/255 mm
AXLE RTX 2070 1410 MHz 1620 MHz 1750 MHz
Colorful iGame RTX 2070 AD Special OC 1410 MHz 1710 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Colorful iGame RTX 2070 Ultra 1410 MHz 1620 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Colorful iGame RTX 2070 Ultra OC 1410 MHz 1710 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Colorful iGame RTX 2070 Ultra OC V2 1410 MHz 1710 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Colorful iGame RTX 2070 Vulcan X OC 1410 MHz 1815 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Colorful RTX 2070 Gaming GT 1410 MHz 1620 MHz 1750 MHz
ELSA RTX 2070 S.A.C 1410 MHz 1620 MHz 1750 MHz 8.11 inches/206 mm
EMTEK HV RTX 2070 BLACK MONSTER 1410 MHz 1620 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EMTEK HV RTX 2070 BLACK MONSTER OC 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EMTEK RTX 2070 Black Edition OC 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EMTEK XENON RTX 2070 StormX Dual 1410 MHz 1620 MHz 1750 MHz 9.25 inches/235 mm
EMTEK XENON RTX 2070 TURBO JET OC 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EVGA RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.6 inches/269 mm
EVGA RTX 2070 Black 1410 MHz 1620 MHz 1750 MHz 10.6 inches/269 mm
EVGA RTX 2070 FTW3 1410 MHz 1800 MHz 1750 MHz 11.89 inches/302 mm, Triple-slot, 1x HDMI 3x DisplayPort 1x USB Type-C
EVGA RTX 2070 FTW3 Ultra 1410 MHz 1815 MHz 1750 MHz 11.89 inches/302 mm, Triple-slot, 1x HDMI 3x DisplayPort 1x USB Type-C
EVGA RTX 2070 XC 1410 MHz 1710 MHz 1750 MHz 10.6 inches/269 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EVGA RTX 2070 XC Black 1410 MHz 1620 MHz 1750 MHz 10.6 inches/269 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
EVGA RTX 2070 XC Ultra 1410 MHz 1725 MHz 1750 MHz 10.6 inches/269 mm, Triple-slot, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward GameSoul RTX 2070 OC 1410 MHz 1830 MHz 1750 MHz 12.28 inches/312 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 1410 MHz 1620 MHz 1750 MHz 9.25 inches/235 mm, 1x DVI 1x HDMI 3x DisplayPort
Gainward RTX 2070 Glare 1410 MHz 1620 MHz 1750 MHz 13.03 inches/331 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Glare OC 1410 MHz 1830 MHz 1750 MHz 13.03 inches/331 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Phantom 1410 MHz 1620 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Phantom GLH 1410 MHz 1815 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Phantom GS 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Phoenix 1410 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Phoenix GS 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Gainward RTX 2070 Wind 1410 MHz 1620 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX BOY RTX 2070 EX 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX BOY RTX 2070 EXOC 1410 MHz 1815 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX BOY RTX 2070 SG Edition 1410 MHz 1830 MHz 1750 MHz 12.13 inches/308 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 EXOC 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 EXOC Gamer 1410 MHz 1620 MHz 1750 MHz 11.22 inches/285 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 EXOC White 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 GAMER 1410 MHz 1830 MHz 1750 MHz 11.77 inches/299 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 General 1410 MHz 1620 MHz 1750 MHz 12.2 inches/310 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 OC 1410 MHz 1815 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 OC 1410 MHz 1830 MHz 1750 MHz 12.52 inches/318 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 OC White 1410 MHz 1830 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GALAX RTX 2070 SG Edition 1410 MHz 1620 MHz 1750 MHz 12.13 inches/308 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GEEKSTAR RTX 2070 Storm Dual 1410 MHz 1620 MHz 1750 MHz 10.04 inches/255 mm
GIGABYTE AORUS RTX 2070 1410 MHz 1770 MHz 1750 MHz 11.42 inches/290 mm, 3x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE AORUS RTX 2070 XTREME 1410 MHz 1815 MHz 1750 MHz 11.42 inches/290 mm, 3x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 GAMING 1410 MHz 1620 MHz 1750 MHz 11.04 inches/280 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 GAMING OC 1410 MHz 1725 MHz 1750 MHz 11.04 inches/280 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 GAMING OC WHITE 1410 MHz 1725 MHz 1750 MHz 11.04 inches/280 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 MINI ITX 1410 MHz 1620 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 Turbo 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2070 Turbo OC 1410 MHz 1620 MHz 1750 MHz 10.7 inches/272 mm
GIGABYTE RTX 2070 WindForce 1410 MHz 1620 MHz 1750 MHz 11.04 inches/280 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Inno3D iChill RTX 2070 Frostbite 1410 MHz 1830 MHz 1750 MHz 10.43 inches/265 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Inno3D iChill RTX 2070 X3 JEKYLL 1410 MHz 1815 MHz 1750 MHz 11.81 inches/300 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Inno3D RTX 2070 Twin X2 1410 MHz 1620 MHz 1750 MHz 7.72 inches/196 mm
Inno3D RTX 2070 X2 OC 1410 MHz 1755 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KFA2 RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KFA2 RTX 2070 EX 1410 MHz 1620 MHz 1750 MHz 11.22 inches/285 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KFA2 RTX 2070 EX OC 1410 MHz 1815 MHz 1750 MHz 11.22 inches/285 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KFA2 RTX 2070 OC 1410 MHz 1815 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KUROTOSHIKOU RTX 2070 1410 MHz 1620 MHz 1750 MHz 11.22 inches/285 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
KUROTOSHIKOU RTX 2070 WHITE 1410 MHz 1830 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Leadtek WinFast RTX 2070 1410 MHz 1620 MHz 1750 MHz 10.5 inches/267 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Manli RTX 2070 (N516 + F401G) 1410 MHz 1620 MHz 1750 MHz 8.94 inches/227 mm, 1x DVI 1x HDMI 3x DisplayPort
Manli RTX 2070 Blower 1410 MHz 1620 MHz 1750 MHz
Manli RTX 2070 Gallardo 1410 MHz 1710 MHz 1750 MHz 11.3 inches/287 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MAXSUN RTX 2070 Turbo X2 1410 MHz 1620 MHz 1750 MHz 8.27 inches/210 mm
MAXSUN RTX 2070 Turbo X2 OC 1410 MHz 1710 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
MAXSUN RTX 2070 Turbo X2 V2 1410 MHz 1620 MHz 1750 MHz
MSI RTX 2070 AERO 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 AERO ITX 1410 MHz 1620 MHz 1750 MHz 6.89 inches/175 mm, 1x HDMI 3x DisplayPort
MSI RTX 2070 ARMOR 1410 MHz 1620 MHz 1750 MHz 12.17 inches/309 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 ARMOR OC 1410 MHz 1740 MHz 1750 MHz 12.17 inches/309 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 ARMOR OCV1 1410 MHz 1710 MHz 1750 MHz 12.17 inches/309 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 DUKE 1410 MHz 1710 MHz 1750 MHz 12.36 inches/314 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 DUKE OC 1410 MHz 1755 MHz 1750 MHz 12.36 inches/314 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 GAMING 1410 MHz 1620 MHz 1750 MHz 12.09 inches/307 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 GAMING X 1410 MHz 1710 MHz 1750 MHz 12.09 inches/307 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 GAMING Z 1410 MHz 1830 MHz 1750 MHz 12.09 inches/307 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
MSI RTX 2070 VENTUS 1410 MHz 1620 MHz 1750 MHz 8.86 inches/225 mm, 1x HDMI 3x DisplayPort
MSI RTX 2070 VENTUS OC 1410 MHz 1710 MHz 1750 MHz 8.86 inches/225 mm, 1x HDMI 3x DisplayPort
NVIDIA GeForce RTX 2070 Founders Edition 1410 MHz 1710 MHz 1750 MHz
Palit RTX 2070 Dual 1410 MHz 1620 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 Dual 1410 MHz 1620 MHz 1750 MHz 9.25 inches/235 mm
Palit RTX 2070 GameRock 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 GameRock Premium 1410 MHz 1815 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 GamingPro 1410 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 GamingPro 1410 MHz 1650 MHz 1750 MHz 9.25 inches/235 mm
Palit RTX 2070 GamingPro OC 1410 MHz 1725 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 GamingPro OC 1410 MHz 1710 MHz 1750 MHz 9.25 inches/235 mm
Palit RTX 2070 JetStream 1410 MHz 1620 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
Palit RTX 2070 Super JetStream 1410 MHz 1740 MHz 1750 MHz 11.5 inches/292 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
PNY RTX 2070 Blower 1410 MHz 1620 MHz 1750 MHz
PNY XLR8 RTX 2070 Gaming OC 1410 MHz 1725 MHz 1750 MHz 9.25 inches/235 mm
SNKTECH RTX 2070 JACKPOT 1410 MHz 1620 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
Yeston RTX 2070 Deluxe Edition 1410 MHz 1620 MHz 1750 MHz 10.04 inches/255 mm
ZOTAC RTX 2070 AMP 1410 MHz 1740 MHz 1750 MHz 10.55 inches/268 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 AMP Extreme 1410 MHz 1860 MHz 1800 MHz 12.13 inches/308 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 AMP Extreme Core 1410 MHz 1815 MHz 1800 MHz 12.13 inches/308 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 Blower 1410 MHz 1620 MHz 1750 MHz 10.55 inches/268 mm
ZOTAC RTX 2070 MINI 1410 MHz 1620 MHz 1750 MHz 8.31 inches/211 mm
ZOTAC RTX 2070 MINI OC 1410 MHz 1650 MHz 1750 MHz 8.31 inches/211 mm
ZOTAC RTX 2070 PGF Extreme OC14 1410 MHz 1830 MHz 1750 MHz 12.17 inches/309 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 PGF Extreme OC8 1410 MHz 1740 MHz 1750 MHz 12.17 inches/309 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 X-Gaming 1410 MHz 1620 MHz 1750 MHz 12.24 inches/311 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 X-Gaming OC 1410 MHz 1680 MHz 1750 MHz 12.24 inches/311 mm, 1x HDMI 3x DisplayPort 1x USB Type-C
ZOTAC RTX 2070 X-Gaming Plus 1410 MHz 1620 MHz 1750 MHz 1x HDMI 3x DisplayPort 1x USB Type-C
