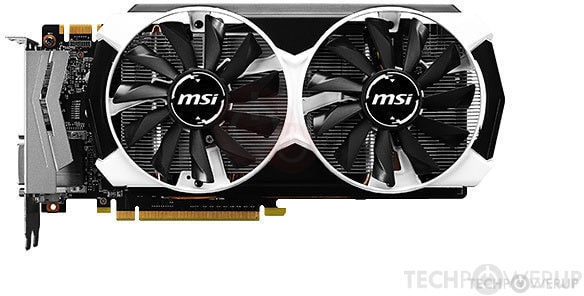

MSI GTX 960 OC 4 GB
- GTX-960-4GD5T-OC
- Graphics Processor
- GM206
- Cores
- 1024
- TMUs
- 64
- ROPs
- 32
- Memory Size
- 4 GB
- Memory Type
- GDDR5
- Bus Width
- 128 bit
GPU
Graphics Processor
- GPU Name
- GM206
- GPU Variant
- GM206-300-A1
- Architecture
- Maxwell 2.0
- Foundry
- TSMC
- Process Size
- 28 nm
- Transistors
- 2,940 million
- Density
- 12.9M / mm²
- Die Size
- 228 mm²
- Chip Package
- BGA-1428
Graphics Card
- Release Date
- Jan 22nd, 2015
- Generation
- GeForce 900
- Predecessor
- GeForce 700
- Successor
- GeForce 10
- Production
- End-of-life
- Bus Interface
- PCIe 3.0 x16
Clock Speeds
- Base Clock
1127 MHz
1178 MHz (+5%)
- Boost Clock
1178 MHz
1241 MHz (+5%)
- Memory Clock
-
1753 MHz
7 Gbps effective
Memory
- Memory Size
-
2 GB
4 GB
- Memory Type
- GDDR5
- Memory Bus
- 128 bit
- Bandwidth
- 112.2 GB/s
Render Config
- Shading Units
- 1024
- TMUs
- 64
- ROPs
- 32
- SMM Count
- 8
- L1 Cache
- 48 KB (per SMM)
- L2 Cache
- 1024 KB
Theoretical Performance
- Pixel Rate
-
37.70 GPixel/s
39.71 GPixel/s
- Texture Rate
-
75.39 GTexel/s
79.42 GTexel/s
- FP32 (float)
-
2.413 TFLOPS
2.542 TFLOPS
- FP64 (double)
-
75.39 GFLOPS
79.42 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
241 mm
273 mm
9.5 inches
10.7 inches
- TDP
- 120 W
- Suggested PSU
- 300 W
- Outputs
- 1x DVI
1x HDMI 2.0
3x DisplayPort 1.2
- Power Connectors
- 1x 6-pin
- Board Number
- PG301
Graphics Features
- DirectX
- 12 (12_1)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 5.2
- Shader Model
- 6.7
GM206 GPU Notes
| NVENC: 5th Gen NVDEC: 2nd Gen PureVideo HD: VP7 VDPAU: Feature Set F |
Other retail boards based on this design (104)
| Name | GPU Clock | Boost Clock | Memory Clock | Other Changes |
|---|---|---|---|---|
| 1190 MHz | 1253 MHz | 1753 MHz | 290 mm/11.4 inches | |
| 1253 MHz | 1317 MHz | 1753 MHz | 290 mm/11.4 inches | |
| 1203 MHz | 1266 MHz | 1753 MHz | ||
| 1203 MHz | 1266 MHz | 1753 MHz | 4 GB | |
| 1228 MHz | 1291 MHz | 1753 MHz | ||
| 1190 MHz | 1253 MHz | 1753 MHz | 170 mm/6.7 inches | |
| 1228 MHz | 1291 MHz | 1800 MHz | 215 mm/8.5 inches | |
| 1228 MHz | 1291 MHz | 1753 MHz | 4 GB, 215 mm/8.5 inches | |
| 1253 MHz | 1317 MHz | 1800 MHz | 215 mm/8.5 inches | |
| 1190 MHz | 1253 MHz | 1753 MHz | 264 mm/10.4 inches | |
| 1190 MHz | 1253 MHz | 1753 MHz | 4 GB, 264 mm/10.4 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 220 mm/8.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1152 MHz | 1216 MHz | 1753 MHz | 168 mm/6.6 inches | |
| 1203 MHz | 1266 MHz | 1753 MHz | 4 GB, 2x DVI 1x HDMI 1x DisplayPort | |
| 1203 MHz | 1266 MHz | 1753 MHz | 280 mm/11 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1140 MHz | 1202 MHz | 1753 MHz | 4 GB | |
| 1203 MHz | 1266 MHz | 1753 MHz | ||
| 1228 MHz | 1291 MHz | 1753 MHz | ||
| 1140 MHz | 1203 MHz | 1753 MHz | 2x DVI 1x HDMI 1x DisplayPort | |
| 1178 MHz | 1241 MHz | 1753 MHz | 206 mm/8.1 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 173 mm/6.8 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB, 173 mm/6.8 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | 260 mm/10.2 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1304 MHz | 1367 MHz | 1753 MHz | 260 mm/10.2 inches | |
| 1304 MHz | 1367 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1304 MHz | 1367 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1216 MHz | 1279 MHz | 1753 MHz | 173 mm/6.8 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1216 MHz | 1279 MHz | 1753 MHz | 4 GB, 173 mm/6.8 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1279 MHz | 1342 MHz | 1753 MHz | 260 mm/10.2 inches | |
| 1279 MHz | 1342 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1279 MHz | 1342 MHz | 1753 MHz | 4 GB, 260 mm/10.2 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB | |
| 1165 MHz | 1228 MHz | 1753 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1203 MHz | 1266 MHz | 1800 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB, 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1279 MHz | 1342 MHz | 1800 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1203 MHz | 1266 MHz | 1753 MHz | 271 mm/10.7 inches | |
| 1304 MHz | 1367 MHz | 1753 MHz | 271 mm/10.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1190 MHz | 1253 MHz | 1753 MHz | 193 mm/7.6 inches | |
| 1190 MHz | 1253 MHz | 1753 MHz | 4 GB, 193 mm/7.6 inches | |
| 1165 MHz | 1228 MHz | 1753 MHz | 193 mm/7.6 inches | |
| 1228 MHz | 1291 MHz | 1753 MHz | 298 mm/11.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1241 MHz | 1304 MHz | 1753 MHz | 295 mm/11.6 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1241 MHz | 1304 MHz | 1753 MHz | 4 GB, 295 mm/11.6 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1165 MHz | 1228 MHz | 1753 MHz | 181 mm/7.1 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1165 MHz | 1228 MHz | 1753 MHz | 4 GB, 181 mm/7.1 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1190 MHz | 1253 MHz | 1753 MHz | 181 mm/7.1 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1190 MHz | 1253 MHz | 1753 MHz | 4 GB, 181 mm/7.1 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1152 MHz | 1203 MHz | 1753 MHz | 257 mm/10.1 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1152 MHz | 1203 MHz | 1753 MHz | 4 GB, 257 mm/10.1 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | 181 mm/7.1 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1216 MHz | 1278 MHz | 1753 MHz | 257 mm/10.1 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1216 MHz | 1279 MHz | 1753 MHz | 4 GB, 257 mm/10.1 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1216 MHz | 1279 MHz | 1753 MHz | 4 GB, 257 mm/10.1 inches, 2x DVI 1x HDMI 3x DisplayPort | |
| 1177 MHz | 1241 MHz | 1753 MHz | 4 GB, 262 mm/10.3 inches | |
| 1304 MHz | 1367 MHz | 1753 MHz | 4 GB, 262 mm/10.3 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | 172 mm/6.8 inches | |
| 1178 MHz | 1241 MHz | 1753 MHz | 215 mm/8.5 inches | |
| 1178 MHz | 1241 MHz | 1753 MHz | 4 GB, 215 mm/8.5 inches | |
| 1329 MHz | 1393 MHz | 1800 MHz | ||
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1203 MHz | 1266 MHz | 1753 MHz | 271 mm/10.7 inches | |
| 1165 MHz | 1228 MHz | 1753 MHz | 183 mm/7.2 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1228 MHz | 1291 MHz | 1753 MHz | 206 mm/8.1 inches | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1190 MHz | 1253 MHz | 1753 MHz | 267 mm/10.5 inches | |
| 1190 MHz | 1253 MHz | 1753 MHz | 267 mm/10.5 inches | |
| 1215 MHz | 1278 MHz | 1753 MHz | 4 GB, 267 mm/10.5 inches | |
| 1152 MHz | 1216 MHz | 1753 MHz | 267 mm/10.5 inches | |
| 1152 MHz | 1216 MHz | 1753 MHz | 267 mm/10.5 inches | |
| 1241 MHz | 1304 MHz | 1753 MHz | 267 mm/10.5 inches | |
| 1178 MHz | 1241 MHz | 1753 MHz | 273 mm/10.7 inches | |
|
MSI GTX 960 OC 4 GB
|
1178 MHz | 1241 MHz | 1753 MHz | 4 GB, 273 mm/10.7 inches |
| 1178 MHz | 1241 MHz | 1753 MHz | 170 mm/6.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 783 MHz | 902 MHz | 4 GB | ||
| 1165 MHz | 1228 MHz | 1800 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1203 MHz | 1266 MHz | 1800 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB, 247 mm/9.7 inches | |
| 1279 MHz | 1342 MHz | 1800 MHz | 247 mm/9.7 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1304 MHz | 1367 MHz | 1753 MHz | ||
| 1203 MHz | 1266 MHz | 1800 MHz | 212 mm/8.3 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1203 MHz | 1266 MHz | 1800 MHz | 4 GB, 212 mm/8.3 inches, 2x DVI 1x HDMI 1x DisplayPort | |
| 1304 MHz | 1367 MHz | 1753 MHz | ||
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1127 MHz | 1178 MHz | 1753 MHz | 4 GB | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1165 MHz | 1228 MHz | 1753 MHz | ||
| 1177 MHz | 1240 MHz | 1753 MHz | ||
| 1177 MHz | 1240 MHz | 1753 MHz | 2x DVI 1x HDMI 1x DisplayPort | |
| 1127 MHz | 1178 MHz | 1753 MHz | ||
| 1177 MHz | 1240 MHz | 1753 MHz | 4 GB | |
| 1266 MHz | 1329 MHz | 1753 MHz | ||
| 1266 MHz | 1329 MHz | 1753 MHz | 2x DVI 1x HDMI 1x DisplayPort | |
| 1266 MHz | 1329 MHz | 1753 MHz | 4 GB | |
| 1304 MHz | 1367 MHz | 1800 MHz | 279 mm/11 inches | |
| 1342 MHz | 1405 MHz | 1800 MHz | 279 mm/11 inches | |
| 1152 MHz | 1216 MHz | 1753 MHz | 229 mm/9 inches, 1x DVI 1x HDMI 1x DisplayPort |
