AMD FirePro M6000

Graphics Processor
Heathrow
Cores
640
TMUs
40
ROPs
16
Memory Size
2 GB
Memory Type
GDDR5
Bus Width
128 bit

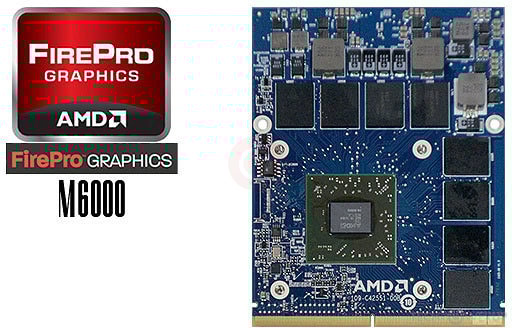

The FirePro M6000 was a professional graphics card by AMD, launched in July 2012. Built on the 28 nm process, and based on the Heathrow graphics processor, in its Heathrow XT GL variant, the card supports DirectX 12.0. The Heathrow graphics processor is an average sized chip with a die area of 123 mm² and 1,500 million transistors. It features 640 shading units, 40 texture mapping units and 16 ROPs. AMD has placed 2,048 MB GDDR5 memory on the card, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 800 MHz, memory is running at 1000 MHz.
Being a mxm module card, the AMD FirePro M6000 does not require any additional power connector, its power draw is rated at 43 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it.

Graphics Processor

GPU Name
Heathrow
GPU Variant
Heathrow XT GL
(216-0835033)
Architecture
GCN 1.0
Foundry
TSMC
Process Size
28 nm
Transistors
1,500 million
Die Size
123 mm²

Mobile Graphics

Release Date
Jul 1st, 2012
Generation
FirePro
(Mx000)
Production
End-of-life
Bus Interface
MXM-B (3.0)
Reviews
2 in our database

Relative Performance

10%
GeForce 210
13%
GeForce 9400 GT
16%
Radeon HD 4550
20%
Radeon HD 5450
24%
Radeon HD 6450
25%
GeForce GT 520
31%
GeForce GT 220
40%
GeForce GT 430
41%
Radeon HD 5570
45%
Radeon HD 4670
47%
GeForce GT 440
48%
GeForce GT 240
55%
GeForce 9600 GT
59%
Radeon HD 5670
63%
GeForce GT 640
65%
GeForce 9800 GT
67%
Radeon HD 6670
70%
Radeon HD 4830
74%
Radeon HD 4770
78%
Radeon HD 4850
80%
GeForce GTS 250
82%
GeForce GTS 450
85%
Radeon HD 5750
97%
Radeon HD 7750
98%
Radeon HD 5770
100%
FirePro M6000
100%
GeForce GTX 260
101%
Radeon HD 4870
101%
Radeon Vega 8
103%
GeForce GTX 550 Ti
103%
GeForce GTX 650
109%
Radeon HD 5830
115%
Radeon HD 6790
117%
Radeon HD 4890
121%
GeForce GTX 460
122%
Radeon RX Vega 11
123%
GeForce GT 1030
125%
GeForce GTX 275
125%
Radeon HD 7770 GHz Edition
125%
GeForce GTX 280
128%
GeForce GTX 465
134%
Radeon HD 6850
136%
GeForce GTX 285
146%
Radeon HD 5850
149%
GeForce GTX 650 Ti
149%
Radeon HD 7790
155%
Radeon RX 550
156%
GeForce GTX 470
161%
Radeon HD 6870
172%
Radeon HD 5870
178%
GeForce GTX 560 Ti
178%
Radeon HD 4870 X2
182%
GeForce GTX 750 Ti
183%
Radeon HD 6950
189%
GeForce GTX 295
191%
GeForce GTX 650 Ti Boost
193%
Radeon HD 7850
196%
GeForce GTX 480
205%
Radeon HD 6970
209%
Radeon R7 265
212%
Radeon RX 460
212%
Radeon R7 370
213%
GeForce GTX 660
214%
GeForce GTX 570
217%
Radeon RX 560
231%
GeForce GTX 950
233%
Radeon HD 7870 GHz Edition
239%
Radeon R9 270X
241%
GeForce GTX 660 Ti
243%
GeForce GTX 580
245%
GeForce GTX 1050
245%
Radeon HD 7950
250%
Radeon HD 5970
257%
GeForce GTX 760
277%
GeForce GTX 670
284%
GeForce GTX 960
291%
Radeon R9 380
293%
Radeon R9 285
296%
Radeon HD 7970
299%
GeForce GTX 680
306%
GeForce GTX 1050 Ti
314%
GeForce GTX 770
321%
Radeon HD 6990
329%
Radeon R9 280X
333%
GeForce GTX 590
333%
Radeon HD 7970 GHz Edition
369%
GeForce GTX 780
383%
GeForce GTX 1650
406%
Radeon RX 470
412%
Radeon R9 290
434%
Radeon RX 570
440%
Radeon R9 390
442%
Radeon R9 290X
448%
GeForce GTX 970
454%
GeForce GTX TITAN
460%
GeForce GTX 780 Ti
467%
Radeon R9 390X
469%
Radeon HD 7990
471%
Radeon RX 480
475%
GeForce GTX 690
500%
Radeon RX 580
511%
GeForce GTX 980
517%
Radeon R9 FURY
517%
GeForce GTX 1060 6 GB
540%
Radeon RX 590
569%
Radeon R9 295X2
572%
GeForce GTX 1660
579%
Radeon R9 FURY X
589%
GeForce GTX 980 Ti
604%
GeForce GTX TITAN X
657%
GeForce GTX 1660 Ti
657%
GeForce GTX 1070
699%
Radeon RX Vega 56
742%
GeForce GTX 1070 Ti
763%
Radeon RX Vega 64
773%
GeForce GTX 1080
773%
GeForce RTX 2060
805%
Radeon RX 5700
869%
GeForce RTX 2060 SUPER
901%
GeForce RTX 2070
922%
Radeon RX 5700 XT
932%
Radeon VII
956%
TITAN X Pascal
985%
GeForce GTX 1080 Ti
996%
GeForce RTX 2070 SUPER
1059%
GeForce RTX 2080
1123%
GeForce RTX 2080 SUPER
1240%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080
Performance estimated based on architecture, shader count and clocks.

Clock Speeds

GPU Clock
800 MHz
Memory Clock
1000 MHz
4000 MHz effective

Memory

Memory Size
2 GB
Memory Type
GDDR5
Memory Bus
128 bit
Bandwidth
64.00 GB/s

Render Config

Shading Units
640
TMUs
40
ROPs
16
Compute Units
10
L1 Cache
16 KB (per CU)
L2 Cache
256 KB

Theoretical Performance

Pixel Rate
12.80 GPixel/s
Texture Rate
32.00 GTexel/s
FP32 (float) performance
1,024 GFLOPS
FP64 (double) performance
64.00 GFLOPS (1:16)

Board Design

Slot Width
MXM Module
TDP
43 W
Outputs
No outputs
Power Connectors
None
Board Number
C425

Graphics Features

DirectX
12.0 (11_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.101
Shader Model
5.1

Heathrow GPU Notes

Architecture Codename: Southern Islands
Chip Variant: Cape Verde
CLRX Version: GCN 1.0
Graphics/Compute: GFX6 (gfx601)
Display Core Engine: 6.0
Unified Video Decoder: 4.0
Video Compression Engine: 1.0
