NVIDIA GeForce GTX 1060 6 GB

Graphics Processor
GP106
Cores
1280
TMUs
80
ROPs
48
Memory Size
6 GB
Memory Type
GDDR5
Bus Width
192 bit
GPU Chip
GPU

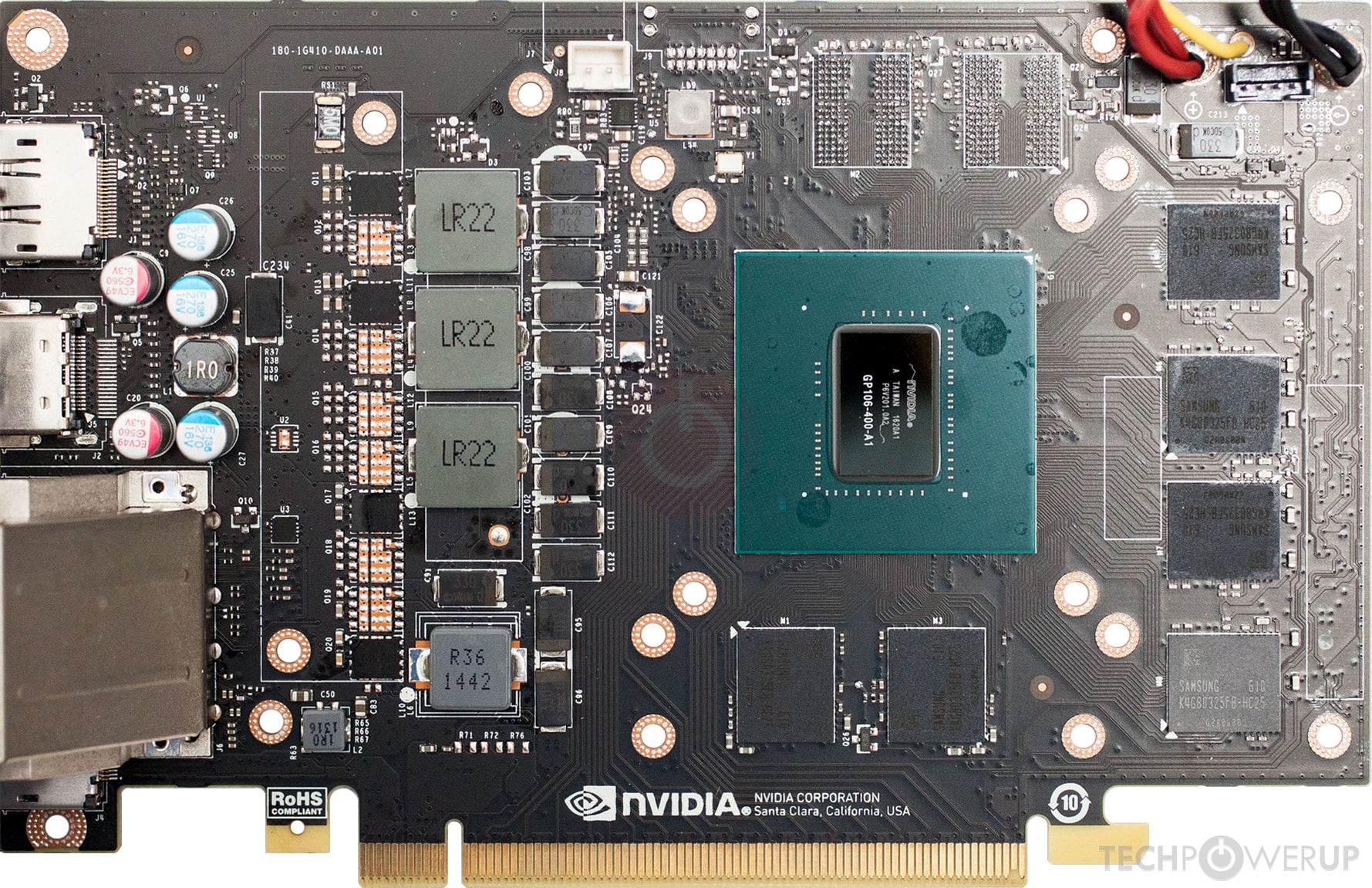

PCB Front
PCB Front

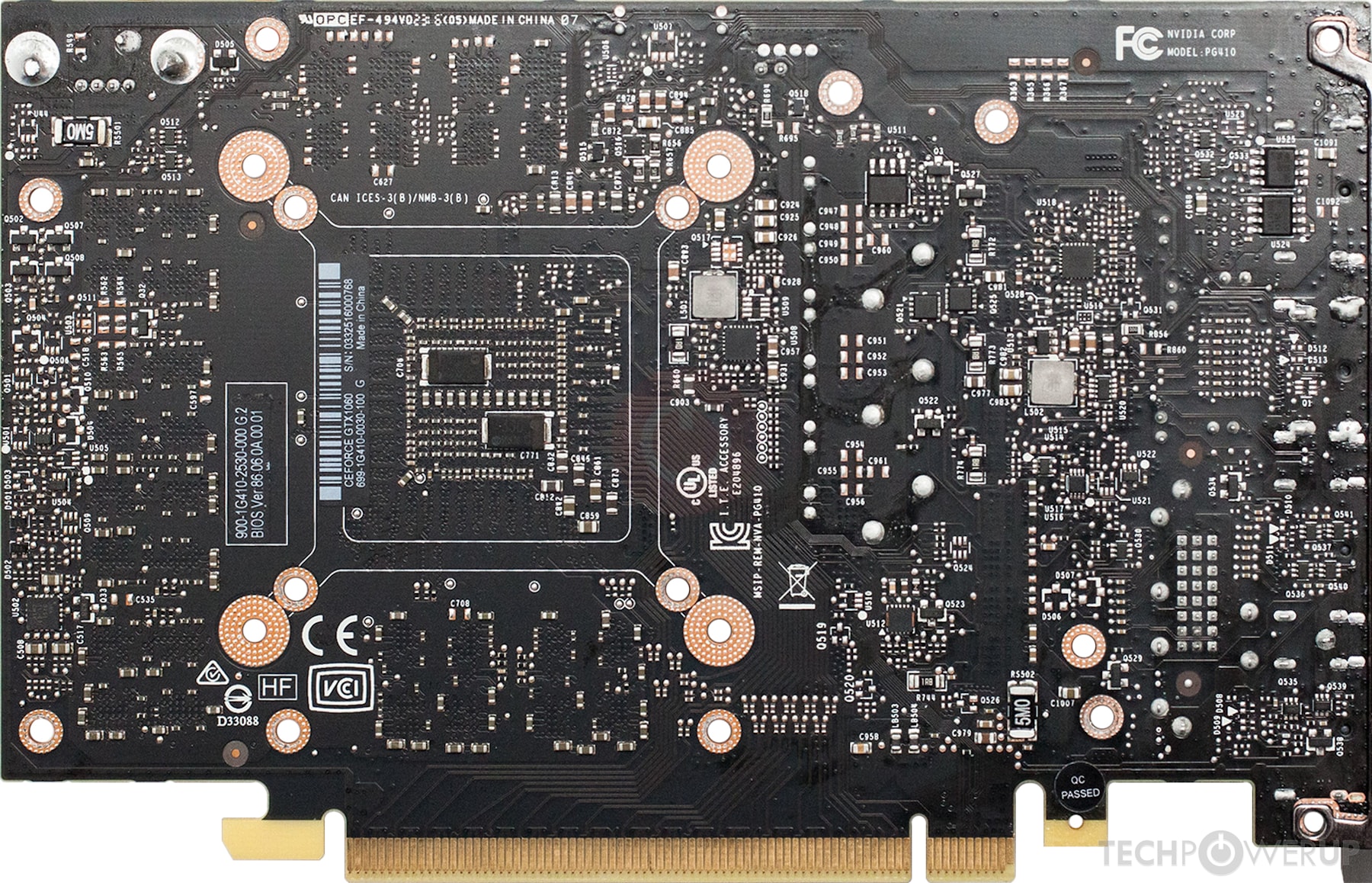

PCB Back
PCB Back
The GeForce GTX 1060 6 GB is a performance graphics card by NVIDIA, launched in July 2016. Built on the 16 nm process, and based on the GP106 graphics processor, in its GP106-400-A1 variant, the card supports DirectX 12.0. The GP106 graphics processor is an average sized chip with a die area of 200 mm² and 4,400 million transistors. It features 1280 shading units, 80 texture mapping units and 48 ROPs. NVIDIA has placed 6,144 MB GDDR5 memory on the card, which are connected using a 192-bit memory interface. The GPU is operating at a frequency of 1506 MHz, which can be boosted up to 1709 MHz, memory is running at 2002 MHz.
Being a dual-slot card, the NVIDIA GeForce GTX 1060 6 GB draws power from 1x 6-pin power connectors, with power draw rated at 120 W maximum. Display outputs include: 1x DVI, 1x HDMI, 3x DisplayPort. GeForce GTX 1060 6 GB is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 250 mm in length, and features a dual-slot cooling solution. Its price at launch was 299 US Dollars.

Graphics Processor

GPU Name
GP106
GPU Variant
GP106-400-A1
Architecture
Pascal
Foundry
TSMC
Process Size
16 nm
Transistors
4,400 million
Die Size
200 mm²

Graphics Card

Release Date
Jul 19th, 2016
Generation
GeForce 10
Predecessor
GeForce 900
Successor
GeForce 20
Production
Active
Launch Price
299 USD
Bus Interface
PCIe 3.0 x16
Reviews
117 in our database

Relative Performance

2%
GeForce 210
3%
GeForce 9400 GT
3%
Radeon HD 4550
4%
Radeon HD 5450
5%
Radeon HD 6450
5%
GeForce GT 520
6%
GeForce GT 220
8%
GeForce GT 430
8%
Radeon HD 5570
9%
Radeon HD 4670
10%
GeForce GT 440
10%
GeForce GT 240
11%
GeForce 9600 GT
12%
Radeon HD 5670
13%
GeForce GT 640
13%
GeForce 9800 GT
14%
Radeon HD 6670
14%
Radeon HD 4830
15%
Radeon HD 4770
16%
Radeon HD 4850
16%
GeForce GTS 250
17%
GeForce GTS 450
18%
Radeon HD 5750
20%
Radeon HD 7750
20%
Radeon HD 5770
21%
GeForce GTX 260
21%
Radeon HD 4870
21%
Radeon Vega 8
21%
GeForce GTX 550 Ti
21%
GeForce GTX 650
22%
Radeon HD 5830
24%
Radeon HD 6790
24%
Radeon HD 4890
25%
GeForce GTX 460
25%
Radeon RX Vega 11
25%
GeForce GT 1030
26%
GeForce GTX 275
26%
Radeon HD 7770 GHz Edition
26%
GeForce GTX 280
26%
GeForce GTX 465
27%
Radeon HD 6850
28%
GeForce GTX 285
30%
Radeon HD 5850
31%
GeForce GTX 650 Ti
31%
Radeon HD 7790
32%
Radeon RX 550
32%
GeForce GTX 470
33%
Radeon HD 6870
35%
Radeon HD 5870
36%
GeForce GTX 560 Ti
37%
Radeon HD 4870 X2
37%
GeForce GTX 750 Ti
37%
Radeon HD 6950
39%
GeForce GTX 295
39%
GeForce GTX 650 Ti Boost
40%
Radeon HD 7850
40%
GeForce GTX 480
42%
Radeon HD 6970
43%
Radeon R7 265
44%
Radeon RX 460
44%
Radeon R7 370
44%
GeForce GTX 660
44%
GeForce GTX 570
45%
Radeon RX 560
47%
GeForce GTX 950
48%
Radeon HD 7870 GHz Edition
49%
Radeon R9 270X
50%
GeForce GTX 660 Ti
50%
GeForce GTX 580
50%
GeForce GTX 1050
50%
Radeon HD 7950
51%
Radeon HD 5970
53%
GeForce GTX 760
57%
GeForce GTX 670
58%
GeForce GTX 960
60%
Radeon R9 380
60%
Radeon R9 285
61%
Radeon HD 7970
61%
GeForce GTX 680
63%
GeForce GTX 1050 Ti
64%
GeForce GTX 770
66%
Radeon HD 6990
67%
Radeon R9 280X
68%
GeForce GTX 590
68%
Radeon HD 7970 GHz Edition
76%
GeForce GTX 780
78%
GeForce GTX 1650
83%
Radeon RX 470
85%
Radeon R9 290
89%
Radeon RX 570
90%
Radeon R9 390
91%
Radeon R9 290X
92%
GeForce GTX 970
93%
GeForce GTX TITAN
94%
GeForce GTX 780 Ti
96%
Radeon R9 390X
96%
Radeon HD 7990
97%
Radeon RX 480
97%
GeForce GTX 690
100%
GeForce GTX 1060 6 GB
101%
Radeon RX 5500
103%
Radeon RX 580
105%
GeForce GTX 980
106%
GeForce GTX 1650 SUPER
106%
Radeon R9 FURY
111%
Radeon RX 590
117%
Radeon R9 295X2
117%
GeForce GTX 1660
119%
Radeon R9 FURY X
121%
GeForce GTX 980 Ti
124%
GeForce GTX TITAN X
132%
GeForce GTX 1660 SUPER
135%
GeForce GTX 1660 Ti
135%
GeForce GTX 1070
143%
Radeon RX Vega 56
152%
GeForce GTX 1070 Ti
156%
Radeon RX Vega 64
159%
GeForce RTX 2060
159%
GeForce GTX 1080
165%
Radeon RX 5700
178%
GeForce RTX 2060 SUPER
185%
GeForce RTX 2070
189%
Radeon RX 5700 XT
191%
Radeon VII
196%
TITAN X Pascal
202%
GeForce GTX 1080 Ti
204%
GeForce RTX 2070 SUPER
217%
GeForce RTX 2080
230%
GeForce RTX 2080 SUPER
254%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

Base Clock
1506 MHz
Boost Clock
1709 MHz
Memory Clock
2002 MHz
8008 MHz effective

Memory

Memory Size
6 GB
Memory Type
GDDR5
Memory Bus
192 bit
Bandwidth
192.2 GB/s

Render Config

Shading Units
1280
TMUs
80
ROPs
48
SM Count
10
L1 Cache
48 KB (per SM)
L2 Cache
1536 KB

Theoretical Performance

Pixel Rate
82.03 GPixel/s
Texture Rate
136.7 GTexel/s
FP16 (half) performance
68.36 GFLOPS (1:64)
FP32 (float) performance
4.375 TFLOPS
FP64 (double) performance
136.7 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Length
9.823 inches
250 mm
TDP
120 W
Suggested PSU
350 W

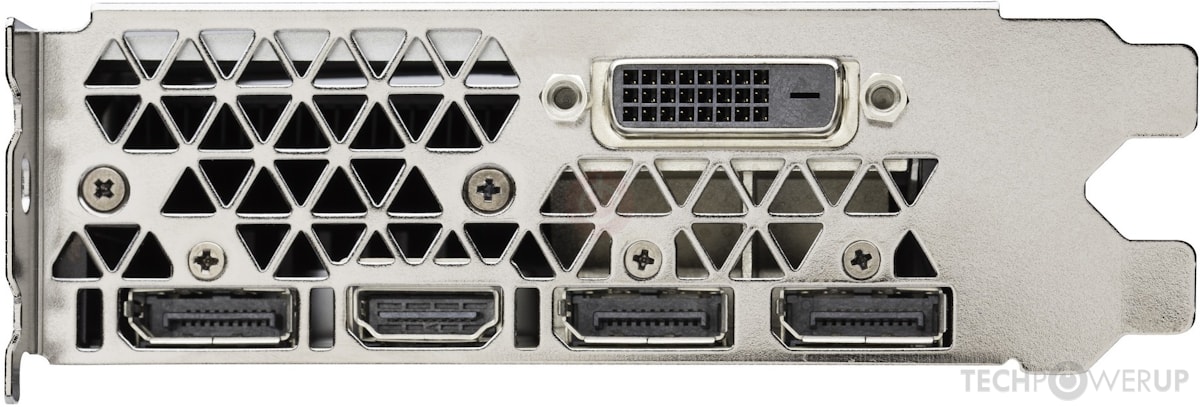

Outputs
1x DVI
1x HDMI
3x DisplayPort
Power Connectors
1x 6-pin
Board Number
PG410 SKU 30

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
1.2
Vulkan
1.1.122
CUDA
6.1
Shader Model
6.4

Retail boards based on this design (203)

Name GPU Clock Boost Clock Memory Clock Other Changes
AFOX GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.5 inches/241 mm
AFOX GTX 1060 V2 1506 MHz 1709 MHz 2002 MHz
ASL GTX 1060 Diamond 1607 MHz 1835 MHz 2002 MHz 8.27 inches/210 mm
ASL GTX 1060 Skynet 1506 MHz 1709 MHz 2002 MHz 8.27 inches/210 mm
ASL GTX 1060 Soaring Dragon 1506 MHz 1709 MHz 2002 MHz 8.27 inches/210 mm
ASL GTX 1060 Warhawk 1506 MHz 1709 MHz 2002 MHz 8.27 inches/210 mm, 1x DVI 1x HDMI 1x DisplayPort
ASUS DUAL GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.53 inches/242 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS DUAL GTX 1060 OC 1569 MHz 1784 MHz 2002 MHz 9.53 inches/242 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS EXPEDITION GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS EXPEDITION GTX 1060 OC 1569 MHz 1785 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS GTX 1060 GAMING 1506 MHz 1709 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS GTX 1060 GAMING OC 1569 MHz 1784 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS GTX 1060 SI 1506 MHz 1709 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS GTX 1060 SI OC 1569 MHz 1784 MHz 2002 MHz 9.45 inches/240 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS PHOENIX GTX 1060 1506 MHz 1709 MHz 2002 MHz 7.2 inches/183 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS TURBO GTX 1060 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS ROG STRIX GTX 1060 DirectCU II 1506 MHz 1709 MHz 2002 MHz 8.6 inches/218 mm
ASUS ROG STRIX GTX 1060 DirectCU II OC 1569 MHz 1785 MHz 2002 MHz 8.6 inches/218 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS ROG STRIX GTX 1060 GAMING 1506 MHz 1709 MHz 2002 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
ASUS ROG STRIX GTX 1060 GAMING OC 1620 MHz 1847 MHz 2052 MHz 11.73 inches/298 mm, 1x DVI 2x HDMI 2x DisplayPort
BIOSTAR GTX 1060 1506 MHz 1709 MHz 2002 MHz 2x DVI 1x HDMI 1x DisplayPort
BIOSTAR GTX 1060 1506 MHz 1709 MHz 2002 MHz
Colorful GTX 1060 GAMING 1506 MHz 1709 MHz 2002 MHz
Colorful GTX 1060 GAMING V2 1506 MHz 1709 MHz 2002 MHz
Colorful GTX 1060 GAMING V3 1506 MHz 1709 MHz 2002 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful GTX 1060 GAMING V5 1518 MHz 1733 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
Colorful GTX 1060 GAMING V5 A 1506 MHz 1709 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
Colorful GTX 1060 GAMING V5 B 1506 MHz 1709 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
Colorful GTX 1060 Mini LE 1506 MHz 1709 MHz 2002 MHz
Colorful GTX 1060 Mini OC 1531 MHz 1746 MHz 2002 MHz
Colorful GTX 1060 Thunderstorm Shark 1506 MHz 1709 MHz 2002 MHz
Colorful GTX 1060 Tomahawk 1544 MHz 1759 MHz 2002 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful iCafe GTX 1060 GAMING 1506 MHz 1709 MHz 2002 MHz
Colorful iCafe GTX 1060 SI 1506 MHz 1709 MHz 2002 MHz
Colorful iCafe GTX 1060 V2 1518 MHz 1733 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 1060 Fire Ares S-TOP 1594 MHz 1809 MHz 2002 MHz
Colorful iGame GTX 1060 Fire Ares S-TOP LE 1506 MHz 1709 MHz 2002 MHz
Colorful iGame GTX 1060 Fire Ares X 1594 MHz 1809 MHz 2002 MHz
Colorful iGame GTX 1060 Fire Ares X LE 1506 MHz 1709 MHz 2002 MHz
Colorful iGame GTX 1060 Fire Ares X-TOP 1620 MHz 1847 MHz 2002 MHz
Colorful iGame GTX 1060 Flame Ares U 1556 MHz 1771 MHz 2002 MHz
Colorful iGame GTX 1060 Flame Ares U LE 1506 MHz 1709 MHz 2002 MHz
Colorful iGame GTX 1060 Flame Ares U-TOP 1594 MHz 1809 MHz 2002 MHz
Colorful iGame GTX 1060 Flame Ares U-TOP LE 1506 MHz 1709 MHz 2002 MHz
Colorful iGame GTX 1060 Flame Ares UT LE 1506 MHz 1709 MHz 2002 MHz
Colorful iGame GTX 1060 Frozen Knight Mini 1531 MHz 1746 MHz 2002 MHz
Colorful iGame GTX 1060 RNG Edition 1620 MHz 1847 MHz 2002 MHz 1x DVI 2x HDMI 2x DisplayPort
Colorful iGame GTX 1060 Vulcan U 1556 MHz 1771 MHz 2002 MHz
Colorful iGame GTX 1060 Vulcan X LE 1506 MHz 1709 MHz 2002 MHz 1x DVI 2x HDMI 2x DisplayPort
Colorful iGame GTX 1060 Vulcan X OC 1620 MHz 1847 MHz 2002 MHz 1x DVI 2x HDMI 2x DisplayPort
Dell GTX 1060 OEM 1506 MHz 1709 MHz 2002 MHz
Digital Alliance GTX 1060 Dual 1506 MHz 1709 MHz 2002 MHz 9.92 inches/252 mm
Digital Alliance GTX 1060 JetStream 1506 MHz 1709 MHz 2002 MHz 9.76 inches/248 mm
Digital Alliance GTX 1060 Super JetStream 1620 MHz 1847 MHz 2002 MHz 9.76 inches/248 mm
ELSA GTX 1060 S.A.C 1506 MHz 1709 MHz 2002 MHz 8.46 inches/215 mm
ELSA GTX 1060 S.A.C R2 1506 MHz 1709 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
EMTEK HV GTX 1060 Gamer Edition 1544 MHz 1759 MHz 2002 MHz
EMTEK HV GTX 1060 Gamer OC 1518 MHz 1733 MHz 2002 MHz
EMTEK HV GTX 1060 OC 1518 MHz 1733 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
EMTEK HV GTX 1060 WHITE MONSTER 1506 MHz 1709 MHz 2002 MHz 9.76 inches/248 mm
EMTEK HV GTX 1060 WHITE MONSTER OC 1620 MHz 1848 MHz 2002 MHz 9.76 inches/248 mm
EMTEK XENON GTX 1060 JetStream FF14 1506 MHz 1709 MHz 2002 MHz 9.76 inches/248 mm
EMTEK XENON GTX 1060 Super JetStream FF14 1620 MHz 1848 MHz 2002 MHz 9.76 inches/248 mm
EVGA GTX 1060 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 ACX 2.0 1506 MHz 1709 MHz 2002 MHz 6.8 inches/173 mm
EVGA GTX 1060 ACX 3.0 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 FTW ACX 3.0 1620 MHz 1847 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 FTW DT ACX 3.0 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 FTW+ ACX 3.0 1632 MHz 1860 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 FTW+ DT ACX 3.0 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 FTW2+ w/ iCX Cooler 1632 MHz 1860 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 SC ACX 2.0 1608 MHz 1835 MHz 2002 MHz 6.8 inches/173 mm
EVGA GTX 1060 SSC ACX 3.0 1607 MHz 1835 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 SSC ACX 3.0 1607 MHz 1835 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 SSC DT ACX 3.0 1506 MHz 1709 MHz 2002 MHz 10.5 inches/267 mm
EVGA GTX 1060 SSC2 w/ iCX Cooler 1607 MHz 1835 MHz 2002 MHz 10.5 inches/267 mm
FORSA GTX 1060 FURY OC 1545 MHz 1759 MHz 2002 MHz
FORSA GTX 1060 GAMING 1506 MHz 1709 MHz 2002 MHz
Gainward GameSoul GTX 1060 1582 MHz 1797 MHz 2002 MHz 11.8 inches/300 mm
Gainward GameSoul GTX 1060 Geek Edition 1620 MHz 1847 MHz 2002 MHz 11.8 inches/300 mm
Gainward GameSoul GTX 1060 Ice Soul 1620 MHz 1847 MHz 2002 MHz
Gainward GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.92 inches/252 mm
Gainward GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.92 inches/252 mm
Gainward GTX 1060 Gale Edition 1544 MHz 1759 MHz 2002 MHz 2x DVI 1x HDMI 1x DisplayPort
Gainward GTX 1060 Herd Edition 1518 MHz 1733 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
Gainward GTX 1060 Phoenix 1506 MHz 1709 MHz 2002 MHz 9.76 inches/248 mm
Gainward GTX 1060 Phoenix GS 1620 MHz 1847 MHz 2002 MHz 9.76 inches/248 mm
GALAX GTX 1060 1506 MHz 1709 MHz 2002 MHz 10.04 inches/255 mm
GALAX GTX 1060 Black 1556 MHz 1771 MHz 2002 MHz 11.7 inches/297 mm
GALAX GTX 1060 Black V2 1556 MHz 1771 MHz 2002 MHz 11.7 inches/297 mm
GALAX GTX 1060 EX OC Black 1544 MHz 1759 MHz 2002 MHz 10.55 inches/268 mm, 2x DVI 1x HDMI 1x DisplayPort
GALAX GTX 1060 EX OC White 1556 MHz 1771 MHz 2002 MHz 9.88 inches/251 mm, 2x DVI 1x HDMI 1x DisplayPort
GALAX GTX 1060 EX OC White TECLAB 1620 MHz 1847 MHz 2002 MHz 9.88 inches/251 mm, 2x DVI 1x HDMI 1x DisplayPort
GALAX GTX 1060 GAMER 1556 MHz 1771 MHz 2002 MHz 11 inches/279 mm
GALAX GTX 1060 General 1544 MHz 1759 MHz 2002 MHz 9.88 inches/251 mm, 2x DVI 1x HDMI 1x DisplayPort
GALAX GTX 1060 HOF 1582 MHz 1797 MHz 2002 MHz 12.2 inches/310 mm
GALAX GTX 1060 HOF GOC Edition 1620 MHz 1848 MHz 2002 MHz 12.2 inches/310 mm
GALAX GTX 1060 HOF Limited Edition 1620 MHz 1847 MHz 2002 MHz 12.2 inches/310 mm
GALAX GTX 1060 HOF V2 1582 MHz 1797 MHz 2002 MHz 12.2 inches/310 mm
GALAX GTX 1060 Mini OC 1531 MHz 1746 MHz 2002 MHz 7.6 inches/193 mm
GALAX GTX 1060 OC 1518 MHz 1733 MHz 2002 MHz
GALAX GTX 1060 OC 1518 MHz 1733 MHz 2002 MHz 8.98 inches/228 mm, 1x DVI 1x HDMI 1x DisplayPort
GALAX GTX 1060 Tiger 1518 MHz 1733 MHz 2002 MHz 9.3 inches/236 mm, 1x DVI 1x HDMI 1x DisplayPort
GALAX SNPR GTX 1060 External Graphics 1531 MHz 1746 MHz 2002 MHz 15.15 inches/385 mm, 1x DVI 1x HDMI 1x DisplayPort
GeIL GTX 1060 1506 MHz 1709 MHz 2002 MHz 2x DVI 1x HDMI 1x DisplayPort
GeIL GTX 1060 OC Edition 1544 MHz 1759 MHz 2002 MHz 9.45 inches/240 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE AORUS GTX 1060 XTREME Edition Rev. 2.0 1620 MHz 1847 MHz 2040 MHz 11.024 inches/280 mm, 1x DVI 3x HDMI 3x DisplayPort
GIGABYTE GTX 1060 G1 Gaming Rev 1.0 1594 MHz 1809 MHz 2002 MHz 10.95 inches/278 mm
GIGABYTE GTX 1060 G1 Gaming Rev. 2.0 1595 MHz 1809 MHz 2002 MHz 10.95 inches/278 mm
GIGABYTE GTX 1060 G1 ROCK 1569 MHz 1784 MHz 2002 MHz 11.7 inches/297 mm
GIGABYTE GTX 1060 MINI ITX OC 1532 MHz 1746 MHz 2002 MHz 6.7 inches/170 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 1060 Rev. 1.0 1506 MHz 1709 MHz 2002 MHz 10.95 inches/278 mm
GIGABYTE GTX 1060 Rev. 2.0 1506 MHz 1709 MHz 2002 MHz 10.95 inches/278 mm
GIGABYTE GTX 1060 WindForce 2X 1506 MHz 1709 MHz 2002 MHz 8.87 inches/225 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 1060 WindForce 2X CN 1531 MHz 1746 MHz 2002 MHz 8.78 inches/223 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 1060 WindForce 2X OC 1556 MHz 1771 MHz 2002 MHz 8.78 inches/223 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 1060 WindForce 2X OC Mining 1556 MHz 1771 MHz 2002 MHz 8.78 inches/223 mm, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 1060 XTREME Gaming 1620 MHz 1847 MHz 2002 MHz 11.024 inches/280 mm
GIGABYTE GTX 1060 XTREME Gaming 1620 MHz 1847 MHz 2040 MHz 11.024 inches/280 mm
Inno3D GTX 1060 Compact 1506 MHz 1709 MHz 2002 MHz 6.77 inches/172 mm
Inno3D GTX 1060 Compact 1506 MHz 1709 MHz 2002 MHz 6.77 inches/172 mm, 1x DVI 1x HDMI 1x DisplayPort
Inno3D GTX 1060 Compact 1506 MHz 1709 MHz 2002 MHz 6.77 inches/172 mm, 1x DVI 1x HDMI 1x DisplayPort
Inno3D GTX 1060 Compact Lineage II 1506 MHz 1709 MHz 2002 MHz 6.77 inches/172 mm
Inno3D GTX 1060 Gaming OC 1570 MHz 1784 MHz 2052 MHz 10.827 inches/275 mm
Inno3D GTX 1060 X2 1506 MHz 1709 MHz 2002 MHz 8.58 inches/218 mm, 2x DVI 1x HDMI 1x DisplayPort
Inno3D iChill GTX 1060 Black 1569 MHz 1784 MHz 2002 MHz 10.5 inches/267 mm
Inno3D iChill GTX 1060 X3 1569 MHz 1784 MHz 2052 MHz 11.9 inches/302 mm
Inno3D iChill GTX 1060 X3 V2 1569 MHz 1784 MHz 2052 MHz 11.9 inches/302 mm, 2x DVI 1x HDMI 1x DisplayPort
KFA2 GTX 1060 1506 MHz 1709 MHz 2002 MHz 10.04 inches/255 mm
KFA2 GTX 1060 EX OC Black 1544 MHz 1759 MHz 2002 MHz 10.55 inches/268 mm, 2x DVI 1x HDMI 1x DisplayPort
KFA2 GTX 1060 EX OC White 1556 MHz 1771 MHz 2002 MHz 9.88 inches/251 mm, 2x DVI 1x HDMI 1x DisplayPort
KFA2 GTX 1060 OC 1518 MHz 1733 MHz 2002 MHz 8.98 inches/228 mm, 1x DVI 1x HDMI 1x DisplayPort
KUROTOSHIKOU GTX 1060 OC 1544 MHz 1759 MHz 2002 MHz 10.55 inches/268 mm
Leadtek WinFast GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.48 inches/241 mm
Leadtek WinFast GTX 1060 Hurricane 1531 MHz 1746 MHz 2002 MHz 9.17 inches/233 mm
Manli GTX 1060 1506 MHz 1709 MHz 2002 MHz 10.04 inches/255 mm
Manli GTX 1060 F336G 1531 MHz 1746 MHz 2002 MHz 8.86 inches/225 mm
Manli GTX 1060 Gallardo 1531 MHz 1746 MHz 2002 MHz 9.17 inches/233 mm
MAXSUN GTX 1060 Gaming Edition 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 Gaming Edition M.4 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 Giant 1506 MHz 1709 MHz 2002 MHz 9.84 inches/250 mm
MAXSUN GTX 1060 Giant M.4 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 JetStream 1582 MHz 1797 MHz 2002 MHz 11.65 inches/296 mm
MAXSUN GTX 1060 JetStream M.1 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 JetStream M.4 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 Terminator 1506 MHz 1709 MHz 2002 MHz 8.66 inches/220 mm, 2x DVI 1x HDMI 1x DisplayPort
MAXSUN GTX 1060 Terminator M.2 1506 MHz 1709 MHz 2002 MHz 8.66 inches/220 mm, 2x DVI 1x HDMI 1x DisplayPort
MAXSUN GTX 1060 Terminator M.3 1506 MHz 1709 MHz 2002 MHz
MAXSUN GTX 1060 Terminator M.4 1506 MHz 1709 MHz 2002 MHz
MSI GTX 1060 AERO ITX 1506 MHz 1709 MHz 2002 MHz 6.89 inches/175 mm
MSI GTX 1060 AERO ITX OC 1544 MHz 1759 MHz 2002 MHz 6.89 inches/175 mm
MSI GTX 1060 ARMOR 1506 MHz 1709 MHz 2002 MHz 10.98 inches/279 mm
MSI GTX 1060 ARMOR OC 1544 MHz 1759 MHz 2002 MHz 10.98 inches/279 mm
MSI GTX 1060 ARMOR OCV1 1544 MHz 1759 MHz 2002 MHz 10.83 inches/275 mm, 1x DVI 2x HDMI 2x DisplayPort
MSI GTX 1060 CAMO SQUAD 1569 MHz 1784 MHz 2002 MHz 10.9 inches/277 mm
MSI GTX 1060 DUKE OC 1594 MHz 1809 MHz 2027 MHz 12.6 inches/320 mm
MSI GTX 1060 GAMING 1519 MHz 1733 MHz 2002 MHz 10.91 inches/277 mm
MSI GTX 1060 GAMING X 1569 MHz 1784 MHz 2002 MHz 10.91 inches/277 mm
MSI GTX 1060 iGAMER OC 1544 MHz 1759 MHz 2002 MHz 7.01 inches/178 mm, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OC 1544 MHz 1759 MHz 2002 MHz 9.73 inches/247 mm, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OCV1 1544 MHz 1759 MHz 2002 MHz 9.56 inches/243 mm, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OCV1 1544 MHz 1759 MHz 2002 MHz 7.4 inches/188 mm, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OCV2 1544 MHz 1759 MHz 2002 MHz 9.57 inches/243 mm, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 1060 OEM 1506 MHz 1709 MHz 2002 MHz

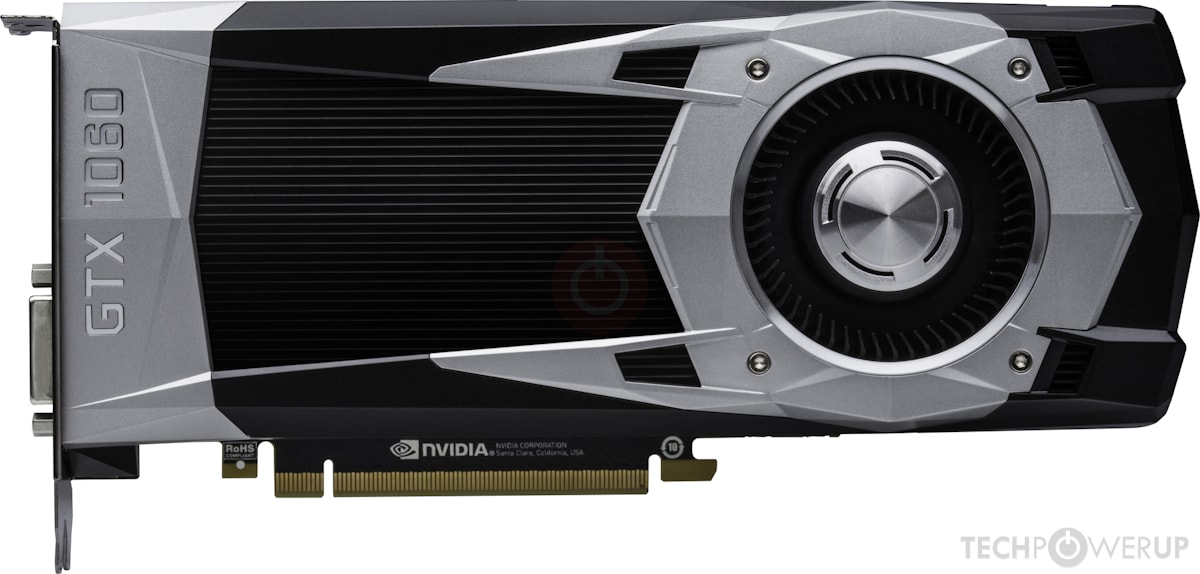

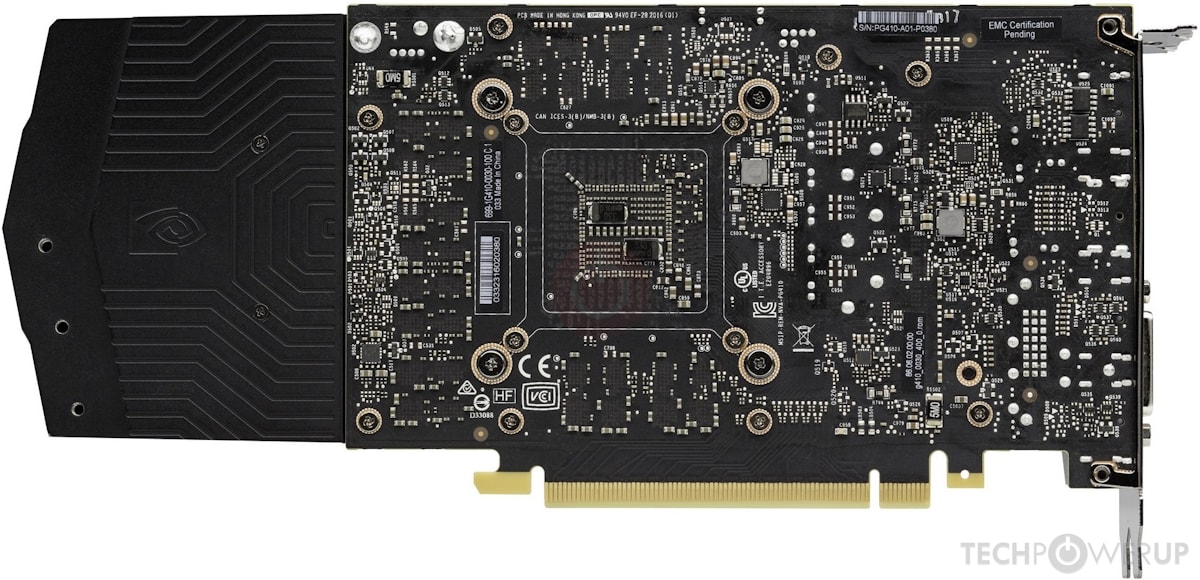

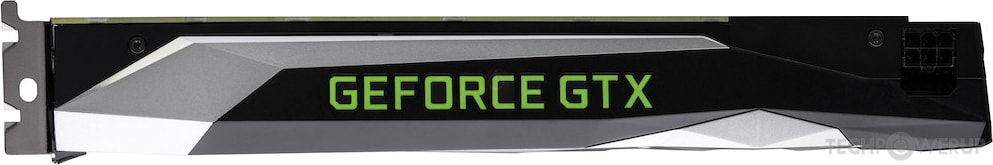

NVIDIA GeForce GTX 1060 Founders Edition 1506 MHz 1709 MHz 2002 MHz
ONDA GTX 1060 Aegis 1506 MHz 1709 MHz 2002 MHz
ONDA GTX 1060 Aegis v1.9 1506 MHz 1709 MHz 2002 MHz
ONDA GTX 1060 Aegis v2.0 1506 MHz 1709 MHz 2002 MHz
Palit GTX 1060 Dual 1506 MHz 1709 MHz 2002 MHz 9.92 inches/252 mm
Palit GTX 1060 JetStream 1506 MHz 1709 MHz 2002 MHz 9.76 inches/248 mm
Palit GTX 1060 Super JetStream 1620 MHz 1847 MHz 2002 MHz 9.76 inches/248 mm
PNY GTX 1060 1506 MHz 1709 MHz 2002 MHz 9.92 inches/252 mm
PNY GTX 1060 CG 1506 MHz 1709 MHz 2002 MHz 9.5 inches/241 mm
PNY XLR8 GTX 1060 Gaming OC 1582 MHz 1797 MHz 2002 MHz 9.17 inches/233 mm
PNY XLR8 GTX 1060 Gaming OC V2 1582 MHz 1797 MHz 2002 MHz 9.17 inches/233 mm
PNY XLR8 GTX 1060 Gaming OC2 1544 MHz 1759 MHz 2002 MHz 9.92 inches/252 mm
Point of View GTX 1060 1506 MHz 1709 MHz 2002 MHz
Pradeon GTX 1060 1506 MHz 1709 MHz 2002 MHz
Yeston GTX 1060 GAEA 1506 MHz 1709 MHz 2002 MHz 8.7 inches/221 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOGIS GTX 1060 1506 MHz 1709 MHz 2002 MHz
ZOGIS GTX 1060 SuperClock 1531 MHz 1746 MHz 2002 MHz 1x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 AMP! Edition 1556 MHz 1771 MHz 2002 MHz 8.27 inches/210 mm
ZOTAC GTX 1060 Destroyer HA 1506 MHz 1709 MHz 2002 MHz 8.46 inches/215 mm
ZOTAC GTX 1060 Destroyer MI 1506 MHz 1709 MHz 2002 MHz 8.46 inches/215 mm
ZOTAC GTX 1060 Destroyer SM 1506 MHz 1709 MHz 2002 MHz 8.46 inches/215 mm
ZOTAC GTX 1060 Extreme Plus 1531 MHz 1746 MHz 2002 MHz 11.81 inches/300 mm
ZOTAC GTX 1060 Galaxy HA 1569 MHz 1784 MHz 2002 MHz 9.84 inches/250 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Galaxy HB 1506 MHz 1709 MHz 2002 MHz 8.47 inches/215 mm, 1x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 GAMING PLUS OC 1569 MHz 1784 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 MINI 1506 MHz 1709 MHz 2002 MHz 6.85 inches/174 mm
ZOTAC GTX 1060 Overseas Edition 1569 MHz 1784 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Perak HA 1506 MHz 1709 MHz 2002 MHz 9.84 inches/250 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Perak T3 OC 1569 MHz 1784 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Plus 1531 MHz 1746 MHz 2002 MHz 11.81 inches/300 mm
ZOTAC GTX 1060 Plus OC 1607 MHz 1835 MHz 2027 MHz 11.81 inches/300 mm
ZOTAC GTX 1060 Thunderbolt 1506 MHz 1709 MHz 2002 MHz 9.84 inches/250 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Thunderbolt BT 1506 MHz 1709 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Thunderbolt HA 1506 MHz 1709 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 Thunderbolt HC 1506 MHz 1709 MHz 2002 MHz 12 inches/305 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 X-Gaming 1531 MHz 1746 MHz 2002 MHz 10.04 inches/255 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 X-Gaming OC 1569 MHz 1784 MHz 2002 MHz 10.04 inches/255 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 X-Gaming OC M3 1569 MHz 1784 MHz 2002 MHz 12.05 inches/306 mm, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 1060 X-Gaming OC S3 1569 MHz 1784 MHz 2002 MHz 12.05 inches/306 mm, 2x DVI 1x HDMI 1x DisplayPort
