NVIDIA GeForce RTX 4060
- Graphics Processor
- AD107
- Cores
- 3072
- TMUs
- 96
- ROPs
- 48
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Bus Width
- 128 bit
GPU
Back
Recommended Gaming Resolutions:
- 1920x1080
- 2560x1440
- 3840x2160

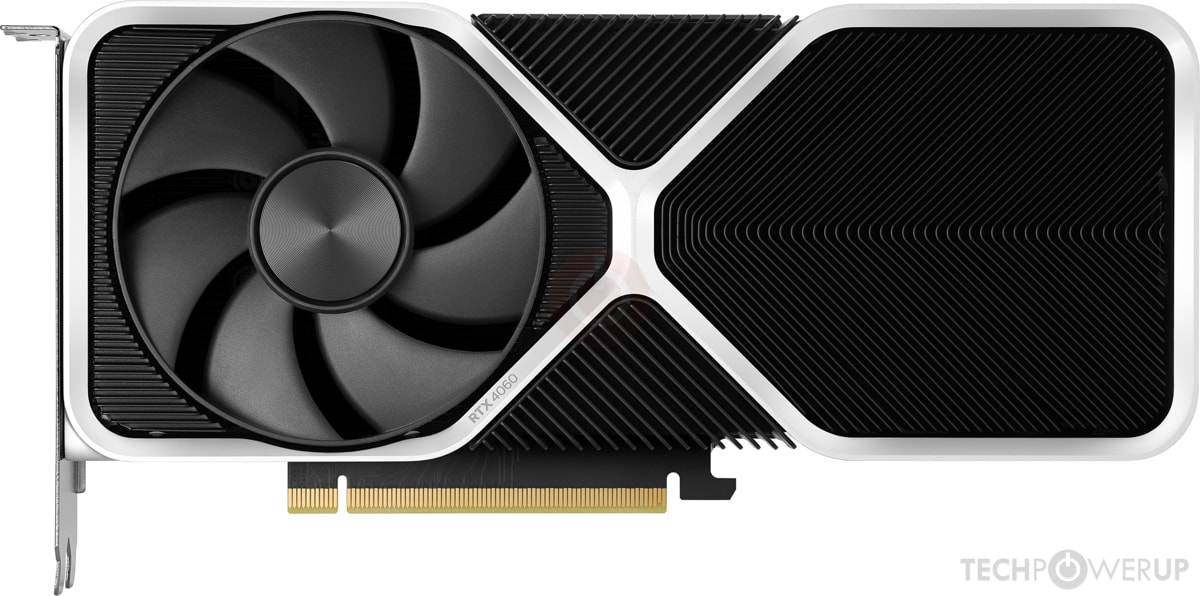

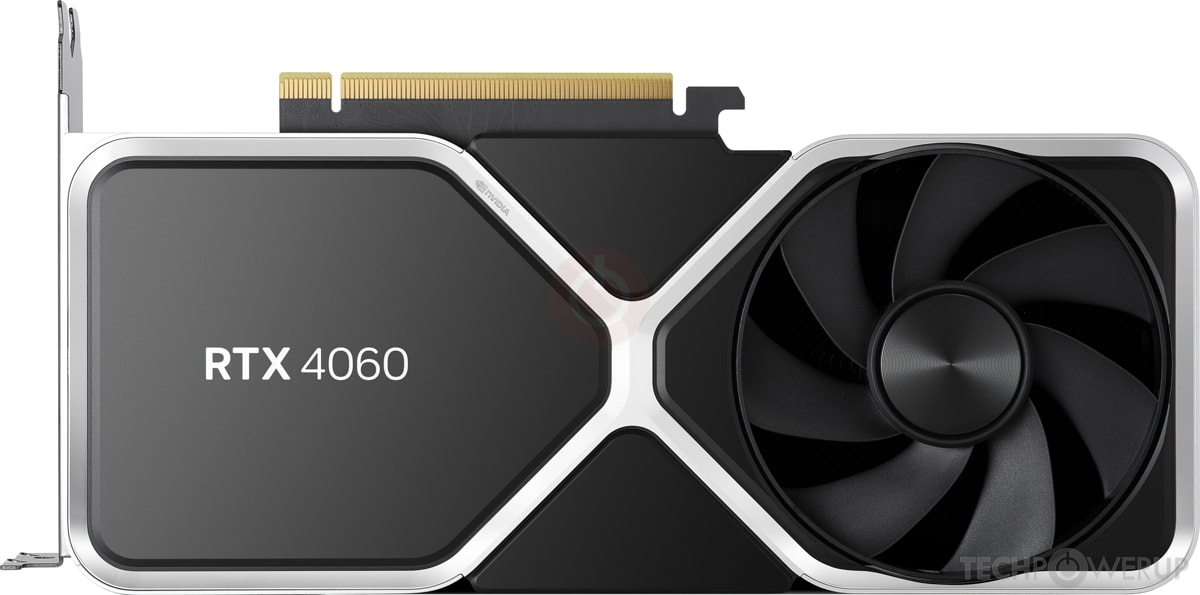

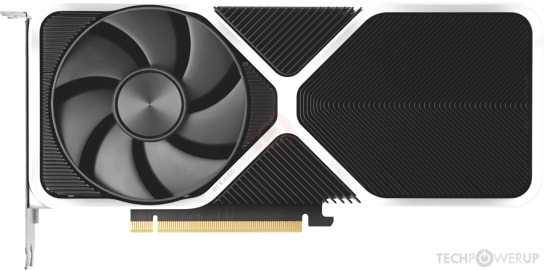

The GeForce RTX 4060 is a performance-segment graphics card by NVIDIA, launched on May 18th, 2023. Built on the 5 nm process, and based on the AD107 graphics processor, in its AD107-400-A1 variant, the card supports DirectX 12 Ultimate. This ensures that all modern games will run on GeForce RTX 4060. Additionally, the DirectX 12 Ultimate capability guarantees support for hardware-raytracing, variable-rate shading and more, in upcoming video games. The AD107 graphics processor is an average sized chip with a die area of 159 mm² and 18,900 million transistors. It features 3072 shading units, 96 texture mapping units, and 48 ROPs. Also included are 96 tensor cores which help improve the speed of machine learning applications. The card also has 24 raytracing acceleration cores. NVIDIA has paired 8 GB GDDR6 memory with the GeForce RTX 4060, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 1830 MHz, which can be boosted up to 2460 MHz, memory is running at 2125 MHz (17 Gbps effective).
Being a dual-slot card, the NVIDIA GeForce RTX 4060 draws power from 1x 12-pin power connector, with power draw rated at 115 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 1.4a. GeForce RTX 4060 is connected to the rest of the system using a PCI-Express 4.0 x8 interface. The card's dimensions are 240 mm x 111 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 299 US Dollars.
Being a dual-slot card, the NVIDIA GeForce RTX 4060 draws power from 1x 12-pin power connector, with power draw rated at 115 W maximum. Display outputs include: 1x HDMI 2.1, 3x DisplayPort 1.4a. GeForce RTX 4060 is connected to the rest of the system using a PCI-Express 4.0 x8 interface. The card's dimensions are 240 mm x 111 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 299 US Dollars.

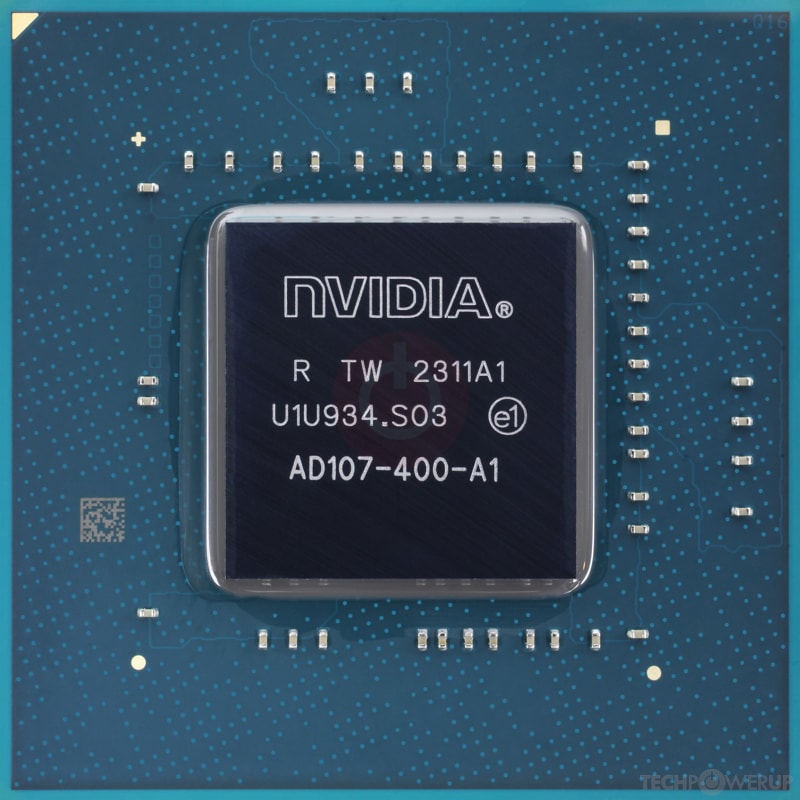

Graphics Processor
- GPU Name
- AD107
- GPU Variant
- AD107-400-A1
- Architecture
- Ada Lovelace
- Foundry
- TSMC
- Process Size
- 5 nm
- Transistors
- 18,900 million
- Density
- 118.9M / mm²
- Die Size
- 159 mm²
Graphics Card
- Release Date
- May 18th, 2023
- Availability
- Jun 29th, 2023
- Generation
- GeForce 40
- Predecessor
- GeForce 30
- Production
- Active
- Launch Price
- 299 USD
- Bus Interface
- PCIe 4.0 x8
- Reviews
- 44 in our database
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for 2080 Ti and faster.
Clock Speeds
- Base Clock
- 1830 MHz
- Boost Clock
- 2460 MHz
- Memory Clock
-
2125 MHz
17 Gbps effective
Memory
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Bus
- 128 bit
- Bandwidth
- 272.0 GB/s
Render Config
- Shading Units
- 3072
- TMUs
- 96
- ROPs
- 48
- SM Count
- 24
- Tensor Cores
- 96
- RT Cores
- 24
- L1 Cache
- 128 KB (per SM)
- L2 Cache
- 24 MB
Theoretical Performance
- Pixel Rate
- 118.1 GPixel/s
- Texture Rate
- 236.2 GTexel/s
- FP16 (half)
- 15.11 TFLOPS (1:1)
- FP32 (float)
- 15.11 TFLOPS
- FP64 (double)
- 236.2 GFLOPS (1:64)
Board Design
- Slot Width
- Dual-slot
- Length
- 240 mm
9.4 inches
- Width
- 111 mm
4.4 inches
- Height
- 40 mm
1.6 inches
- TDP
- 115 W
- Suggested PSU
- 300 W
- Outputs
- 1x HDMI 2.1
3x DisplayPort 1.4a
- Power Connectors
- 1x 12-pin
- Board Number
- PG173 SKU 371
Graphics Features
- DirectX
- 12 Ultimate (12_2)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 8.9
- Shader Model
- 6.7
AD107 GPU Notes
| Ray Tracing Cores: 3rd Gen Tensor Cores: 4th Gen NVENC: 8th Gen NVDEC: 5th Gen PureVideo HD: VP12 VDPAU: Feature Set L |
Retail boards based on this design (76)
| Name | GPU Clock | Boost Clock | Memory Clock | Other Changes |
|---|---|---|---|---|
| 1830 MHz | 2460 MHz | 2125 MHz | 227 mm/8.9 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 227 mm/8.9 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 202 mm/8 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 202 mm/8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 227 mm/8.9 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 227 mm/8.9 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 300 mm/11.8 inches | |
| 1830 MHz | 2550 MHz | 2125 MHz | 300 mm/11.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 317 mm/12.5 inches, Triple-slot | |
| 1830 MHz | 2460 MHz | 2125 MHz | 311 mm/12.2 inches, Triple-slot | |
| 1830 MHz | 2670 MHz | 2125 MHz | 311 mm/12.2 inches, Triple-slot | |
| 1830 MHz | 2460 MHz | 2125 MHz | 249 mm/9.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 255 mm/10 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 255 mm/10 inches | |
| 1830 MHz | 2580 MHz | 2125 MHz | 325 mm/12.8 inches | |
| 1830 MHz | 2580 MHz | 2125 MHz | 313 mm/12.3 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 177 mm/7 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 325 mm/12.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 249 mm/9.8 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 205 mm/8.1 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2670 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 170 mm/6.7 inches | |
| 1830 MHz | 2580 MHz | 2125 MHz | 299 mm/11.8 inches, 130 W | |
| 1830 MHz | 2670 MHz | 2125 MHz | 299 mm/11.8 inches, 130 W | |
| 1830 MHz | 2550 MHz | 2125 MHz | 231 mm/9.1 inches | |
| 1830 MHz | 2475 MHz | 2125 MHz | 237 mm/9.3 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 312 mm/12.3 inches | |
| 1830 MHz | 2670 MHz | 2125 MHz | 312 mm/12.3 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 203 mm/8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 228 mm/9 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 228 mm/9 inches | |
| 1830 MHz | 2640 MHz | 2125 MHz | 299 mm/11.8 inches, Triple-slot, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2550 MHz | 2125 MHz | 281 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2505 MHz | 2125 MHz | 281 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2505 MHz | 2125 MHz | 272 mm/10.7 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2550 MHz | 2125 MHz | 281 mm/11.1 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2475 MHz | 2125 MHz | 182 mm/7.2 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2475 MHz | 2125 MHz | 192 mm/7.6 inches, 2x HDMI 2x DisplayPort | |
| 1830 MHz | 2460 MHz | 2125 MHz | 155 mm/6.1 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2490 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2490 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2475 MHz | 2125 MHz | 237 mm/9.3 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2565 MHz | 2125 MHz | 251 mm/9.9 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 247 mm/9.7 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 319 mm/12.6 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 247 mm/9.7 inches | |
| 1830 MHz | 2595 MHz | 2125 MHz | 247 mm/9.7 inches | |
| 1830 MHz | 2595 MHz | 2125 MHz | 247 mm/9.7 inches | |
| 1830 MHz | 2595 MHz | 2125 MHz | 247 mm/9.7 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 199 mm/7.8 inches | |
| 1830 MHz | 2490 MHz | 2125 MHz | 199 mm/7.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2475 MHz | 2125 MHz | 250 mm/9.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 170 mm/6.7 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 210 mm/8.3 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 268 mm/10.6 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 268 mm/10.6 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 172 mm/6.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 248 mm/9.8 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 230 mm/9.1 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 230 mm/9.1 inches | |
| 1830 MHz | 2610 MHz | 2125 MHz | 315 mm/12.4 inches, Triple-slot | |
| 1830 MHz | 2475 MHz | 2125 MHz | 239 mm/9.4 inches | |
| 1830 MHz | 2475 MHz | 2125 MHz | 222 mm/8.7 inches | |
| 1830 MHz | 2460 MHz | 2125 MHz | 163 mm/6.4 inches | |
| 1830 MHz | 2490 MHz | 2125 MHz | 221 mm/8.7 inches | |
| 1830 MHz | 2535 MHz | 2125 MHz | 303 mm/11.9 inches | |
| 1830 MHz | 2505 MHz | 2125 MHz | 218 mm/8.6 inches |
