ATI Mobility Radeon HD 5830
- Graphics Processor
- Broadway
- Cores
- 800
- TMUs
- 40
- ROPs
- 16
- Memory Size
- 1024 MB
- Memory Type
- GDDR3
- Bus Width
- 128 bit
GPU
Recommended Gaming Resolutions:
- 640x480
- 1280x720
- 1366x768

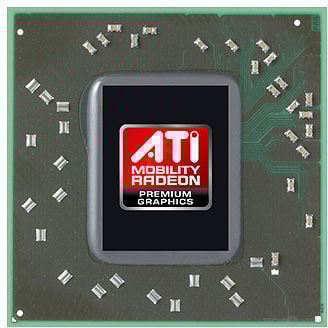

The Mobility Radeon HD 5830 was a mobile graphics chip by ATI, launched on January 7th, 2010. Built on the 40 nm process, and based on the Broadway graphics processor, in its Broadway LP variant, the chip supports DirectX 11.2. The Broadway graphics processor is an average sized chip with a die area of 166 mm² and 1,040 million transistors. It features 800 shading units, 40 texture mapping units, and 16 ROPs. ATI has paired 1,024 MB GDDR3 memory with the Mobility Radeon HD 5830, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 500 MHz, memory is running at 800 MHz.
Its power draw is rated at 24 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device. Mobility Radeon HD 5830 is connected to the rest of the system using a PCI-Express 2.0 x16 interface.
Its power draw is rated at 24 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device. Mobility Radeon HD 5830 is connected to the rest of the system using a PCI-Express 2.0 x16 interface.
Graphics Processor
- GPU Name
- Broadway
- GPU Variant
-
Broadway LP
(216-0769000)
- Architecture
- TeraScale 2
- Foundry
- TSMC
- Process Size
- 40 nm
- Transistors
- 1,040 million
- Density
- 6.3M / mm²
- Die Size
- 166 mm²
- Chip Package
- FCBGA-962
Mobile Graphics
- Release Date
- Jan 7th, 2010
- Generation
-
Manhattan
(Mobility HD 5800)
- Predecessor
- M9x
- Successor
- Vancouver
- Production
- End-of-life
- Bus Interface
- PCIe 2.0 x16
- Reviews
- 2 in our database
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- GPU Clock
- 500 MHz
- Memory Clock
-
800 MHz
1600 Mbps effective
Memory
- Memory Size
- 1024 MB
- Memory Type
- GDDR3
- Memory Bus
- 128 bit
- Bandwidth
- 25.60 GB/s
Render Config
- Shading Units
- 800
- TMUs
- 40
- ROPs
- 16
- Compute Units
- 10
- L1 Cache
- 8 KB (per CU)
- L2 Cache
- 256 KB
Theoretical Performance
- Pixel Rate
- 8.000 GPixel/s
- Texture Rate
- 20.00 GTexel/s
- FP32 (float)
- 800.0 GFLOPS
Board Design
- TDP
- 24 W
- Outputs
- Portable Device Dependent
Graphics Features
- DirectX
- 11.2 (11_0)
- OpenGL
- 4.4
- OpenCL
- 1.2
- Vulkan
- N/A
- Shader Model
- 5.0
Broadway GPU Notes
| Generation: Evergreen Desktop Variant: Juniper Graphics/Compute: GFX4 Display Core Engine: 4.0 Unified Video Decoder: 2.3 |
