Introduction

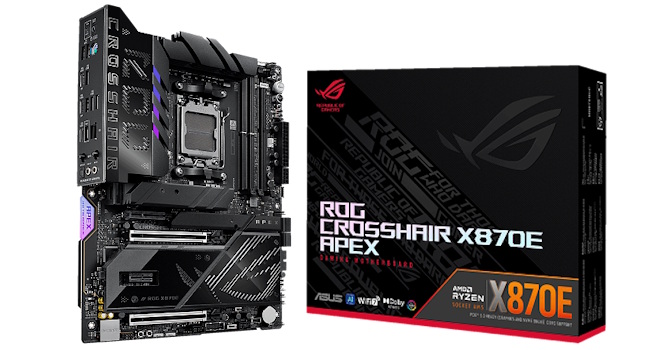

If the halo tier ASUS ROG Crosshair X870E Extreme was going to leave your wallet feeling a little too anemic, but you're still in the market for an overclocking-focused Socket AM5 motherboard and have a significant budget, then ASUS does have a slightly less lavish alternative. The ROG Crosshair X870E Apex is the latest incarnation of this thoroughbred overclocking motherboard that stretches back a few generations on Intel platforms, but this is the first time it's ventured into AMD territory.
Think of it as a trimmed down ASUS ROG Crosshair X870E Extreme with a focus purely on performance, or a slightly less mainstream ASUS ROG Crosshair X870E Hero, with less of an emphasis on being a daily driver. That said, the ROG Crosshair X870E Apex is still a perfectly capable everyday board, but is more than happy to switch to extreme cooling to bring the best out of your CPU and memory, offering all the tools you need to do so.
The $750 price tag does mean you get most of the premium features you'd expect at this price, but a lot of that cash has been funneled into an array of overclocking features. You don't quite get the same lavish mainstream feature set as other boards at this price, or those that are offered by its more expensive Crosshair Extreme sibling. The question is whether the Apex is so niche it appeals to even fewer people as a result, or if it's a better, cheaper alternative for extreme overclocking fans.
Specifications
Specifications |
---|
CPU Support: | AMD Socket AM5 Ryzen 7000, 9000 |
---|
Power Design: | CPU Power: 18-phase SOC Power: 2-phase MISC Power: 2-phase |
---|
Chipset: | AMD X870E |
---|
Integrated Graphics: | Supported 1x HDMI 2x DisplayPort via USB-C
|
---|
Memory: | 2x DIMM, Support up to 256 GB 2x Single Rank DDR5-9600 (OC) |
---|
BIOS: | 256 Mbit AMI UEFI |
---|
Expansion Slots: | 2x PCIe Gen 5 x16 slot (x16, x8/x8, x8/x4/x4) 1x PCIe Gen 4 x4 slot 1x PCIe Gen 3 x1 slot
|
---|
Storage: | 4x SATA 6 Gb/s 1x Slim SAS PCIe Gen 4 (x4) 3x M.2 (PCIe Gen 5 x4) 2x M.2 (PCIe Gen 4 x4) (via DIMM.2)
|
---|
Networking: | 1x Realtek RTL8126 5 Gbps Ethernet 1x MediaTek MT7927 Wi-Fi 7
|
---|
Rear Ports: | BIOS Flashback button CMOS Clear button 1x 5 Gbps Ethernet 1x HDMI port 2x USB4 40 Gbps (Type-C) 5x USB 3.2 Gen 2 10 Gbps (Type-A) 1x USB 3.2 Gen 2 10 Gbps (Type-C) 2x USB 3.0 (Type-A) 1x PS/2 combo port 2x Wi-Fi antenna connectors 2x Audio jacks 1x Optical S/PDIF Out port
|
---|
Audio: | 1x Realtek ALC4082 Codec |
---|
Fan / Thermistor headers: | 9x 4-pin / 3 (two via DIMM.2) |
---|
Form Factor: | ATX Form Factor 12.0 x 9.6 in. / 30.5 x 244 cm |
---|
Exclusive Features: | - M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Antenna
- ROG Q-DIMM.2
- PCIe Slot Q-Release Slim
|
---|
