Tuesday, April 6th 2021

Microsoft Tests New Liquid Cooling System for The Data Center

Microsoft employees are trialing a novel new immersive cooling system for their data center servers involving boiling liquid. Microsoft has looked to this two-phase closed-loop system as a solution to increasing power requirements from components. The cooling system features large vats where servers are submerged in a specially designed fluid from 3M which is harmless to electronics and boils at just 50°C (122°F). The heat from the servers is transferred to the fluid which boils and carries the heat away without any risk of overheating. The vats each contain a condenser that comes in contact with the gas cooling it down into a liquid and falling back into the loop. Microsoft claims that this new cooling approach will improve efficiency and sustainability through increased utilization of resources.
Source: Microsoft
Add your own comment

21 Comments on Microsoft Tests New Liquid Cooling System for The Data Center

#1
Darksaber
Senior Editor & Case Reviewer
Why is there a picture of a guy smiling into the camera? :D
Posted on Reply
#2
Caring1
Darksaber
Why is there a picture of a guy smiling into the camera? :D
Maybe it's the fumes. :laugh:
Posted on Reply
#3
ZoneDymo
is this not one of those technologies that we have seen presented..oh idk, 10 years ago? more?
Posted on Reply
#4
ZeppMan217
ZoneDymo
is this not one of those technologies that we have seen presented..oh idk, 10 years ago? more?
Was gonna say the same thing. Isn't this mineral oil cooling?
Posted on Reply
#5
turbogear

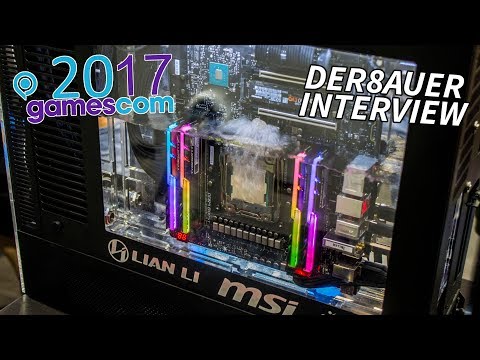

This principle was shown also by Der8auer in 2017 at Gamescom but if I remember this was supper expensive.
Der8auer offered also at that time some systems at Caseking with this principle but if I remember correctly the cost of one high end PC with such submerged liquid cooling was around 10k€. :oops:
He at that time said that servers use this.
So maybe it was not widespread in server and Microsoft want to bring it to next level now. :rolleyes:

Posted on Reply
#7
dyonoctis
ZeppMan217
Was gonna say the same thing. Isn't this mineral oil cooling?
It looks similar, but 3M liquid isn't mineral oil. Mineral oil doesn't evaporate for one :D
Posted on Reply
#8
Anvirol
I wonder what kind of liquid is that. I hope they have extensively studied the safety of it..

3M synthetic liquids immediately remind me of PFOA / C8 chemical scandal which can be found in multiple U.S. water sources.
It can cause multiple cancers. Some people who worked directly with the chemical died in just a few years.
Posted on Reply
#10
1d10t
ZoneDymo
is this not one of those technologies that we have seen presented..oh idk, 10 years ago? more?
Actually it was demonstrated in CES 2019.

[MEDIA=Youtube]YyKIZPuepl8[/MEDIA]
Posted on Reply
#12
Punkenjoy
1 phase cooling is like water cooling or mineral oil immersion. The liquid stay in the same phase and you move that liquid to a radiator to cool it.

2 phase cooling is when the liquid change phase (evaporate) then is condensed and put back in the loop.

Changing phase require a lot of energy. So when the liquid boil, it absorb a great deal of energy from the part you want to cool. (This is how humans cool themselves by sweating). And when the liquid condensate of it have to release a lot of energy. Vapors are easier to move around also.

But you are right, heatpipe are 2 phase cooler and they were around for quite some time. The difference here is the liquid isn't encapsulated into pipe. The whole system sit in it.
Posted on Reply
#13
Quitessa
Yeah this is pretty old news really, 3M have been trying to sell this for Years as the Ultimate Cooling Solution

Servers

PC
Posted on Reply
#14
L'Eliminateur
it's 3M Fluorinert, that liquid is already used in the industry for other stuff, but since it's "thin"(it has very low viscosity, in fact i think it's "thinner" than water) and the surface tension is similar(it "wets" easily) plus the boiling point is low at atmospheric pressure (around 60~70°ish) AND it's nonconductive and doesn't leave residue, it's been used for immersion cooling since several years ago.

The gist, it's expensive AF, liquid gold levels of expensive.

I think the only twist that MS is bringing is that it's a condensing closed system, making sure you don't lose the liquid gold to evaporation
Posted on Reply
#15
Dr_b_
Data centers have been using this for a while now, wonder what the microsoft "innovation" is to this
Posted on Reply
#16
R0H1T
1d10t
Actually it was demonstrated in CES 2019.

[MEDIA=Youtube]YyKIZPuepl8[/MEDIA]
So these are the guys who siphoned off all those 16x 2080 Ti's o_O
Vayra86
Why not get something more recent eh

www.nbcnews.com/news/us-news/florida-reservoir-leaking-toxic-wastewater-demonstrates-decades-regulatory-failure-environmental-n1263089
Scale mostly, human death toll which is estimated to be a lot more than 20k ~ that's just the headline number, a lot more people died due to exposure in the years since & at least 10x have had lasting effects of the gas literally etched into their bodies!
Posted on Reply
#17
L'Eliminateur
Dr_b_
Data centers have been using this for a while now, wonder what the microsoft "innovation" is to this
as i've said, probably the innovation is the condensing system and how it's a "sealed" off vat
Posted on Reply
#18
pisscut
I worked with this stuff building battery driven Heavy Fondation Equipment.
We had to cool the batteries with this stuff "3m Novec 7300" . I Think one Liter cost 110-130€
Posted on Reply
#19
Wirko
L'Eliminateur
it's 3M Fluorinert, that liquid is already used in the industry for other stuff, but since it's "thin"(it has very low viscosity, in fact i think it's "thinner" than water) and the surface tension is similar(it "wets" easily) plus the boiling point is low at atmospheric pressure (around 60~70°ish) AND it's nonconductive and doesn't leave residue, it's been used for immersion cooling since several years ago.

The gist, it's expensive AF, liquid gold levels of expensive.

I think the only twist that MS is bringing is that it's a condensing closed system, making sure you don't lose the liquid gold to evaporation
Looks like it's 3M Fluorinert FC-3284, which has a boiling point at 50°C. Pricing upon request. Here's a price listing for FC-72 - similar but boils at 56°C and is closer to silver, price-wise.

A fluid like this has to be used in a condensing closed system - there simply is no other option when you're working with a fluid close to its boiling point. The datasheet indeed suggests that the fluid can also be used in single-phase systems - but the super low boiling point is one of the characteristics that make it super expensive, and why would anyone buy it and then not make use of evaporation?
Posted on Reply
#20
qwerty_lesh
:roll: so how much money did they lose getting the photo of the system open while it was making all those bubbles surrounding the motherboards :laugh:
Posted on Reply
