AMD Radeon HD 6350A
- Graphics Processor
- Cedar
- Cores
- 80
- TMUs
- 8
- ROPs
- 4
- Memory Size
- 512 MB
- Memory Type
- DDR3
- Bus Width
- 64 bit
GPU
Recommended Gaming Resolutions:
- 640x480
- 1280x720
- 1366x768
The Radeon HD 6350A was a mobile graphics chip by AMD, launched on April 7th, 2011. Built on the 40 nm process, and based on the Cedar graphics processor, the chip supports DirectX 11.2. The Cedar graphics processor is a relatively small chip with a die area of only 59 mm² and 292 million transistors. It features 80 shading units, 8 texture mapping units, and 4 ROPs. AMD has paired 512 MB DDR3 memory with the Radeon HD 6350A, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 650 MHz, memory is running at 800 MHz.

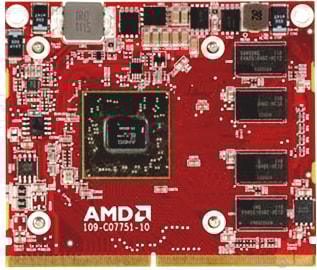

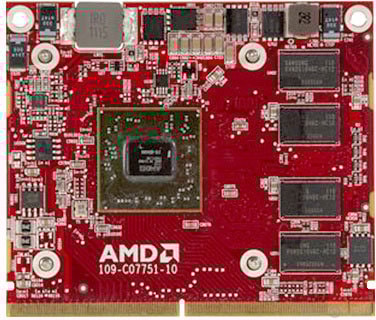

Being a mxm module card, its power draw is rated at 25 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.
Being a mxm module card, its power draw is rated at 25 W maximum. This device has no display connectivity, as it is not designed to have monitors connected to it. Rather it is intended for use in laptop/notebooks and will use the output of the host mobile device.
Graphics Processor
- GPU Name
- Cedar
- Architecture
- TeraScale 2
- Foundry
- TSMC
- Process Size
- 40 nm
- Transistors
- 292 million
- Density
- 4.9M / mm²
- Die Size
- 59 mm²
- Chip Package
- FCBGA-631
Mobile Graphics
- Release Date
- Apr 7th, 2011
- Generation
-
All-In-One
(HD 6000)
- Production
- End-of-life
- Bus Interface
- MXM-A (3.0)
Relative Performance
Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.
Performance estimated based on architecture, shader count and clocks.
Clock Speeds
- GPU Clock
- 650 MHz
- Memory Clock
-
800 MHz
1600 Mbps effective
Memory
- Memory Size
- 512 MB
- Memory Type
- DDR3
- Memory Bus
- 64 bit
- Bandwidth
- 12.80 GB/s
Render Config
- Shading Units
- 80
- TMUs
- 8
- ROPs
- 4
- Compute Units
- 2
- L1 Cache
- 8 KB (per CU)
- L2 Cache
- 128 KB
Theoretical Performance
- Pixel Rate
- 2.600 GPixel/s
- Texture Rate
- 5.200 GTexel/s
- FP32 (float)
- 104.0 GFLOPS
Board Design
- Slot Width
- MXM Module
- TDP
- 25 W
- Outputs
- Portable Device Dependent
Graphics Features
- DirectX
- 11.2 (11_0)
- OpenGL
- 4.4
- OpenCL
- 1.2
- Vulkan
- N/A
- Shader Model
- 5.0
Card Notes
| Used In All-In-One PCs |
Cedar GPU Notes
| Generation: Evergreen Mobile Variant: Park / Robson Graphics/Compute: GFX4 Display Core Engine: 4.0 Unified Video Decoder: 2.3 Latest Drivers: Windows XP / 8: Catalyst Software Suite 14.4 Windows Vista : Catalyst Software Suite 13.12 Windows 7 / 8.1 / 10: Catalyst Software Suite 15.7.1 / 16.2.1 Beta |
