NVIDIA GeForce RTX 2080 Ti

TU102
Graphics Processor
4352
Cores
272
TMUs
88
ROPs
11 GB
Memory Size
GDDR6
Memory Type
352 bit
Bus Width

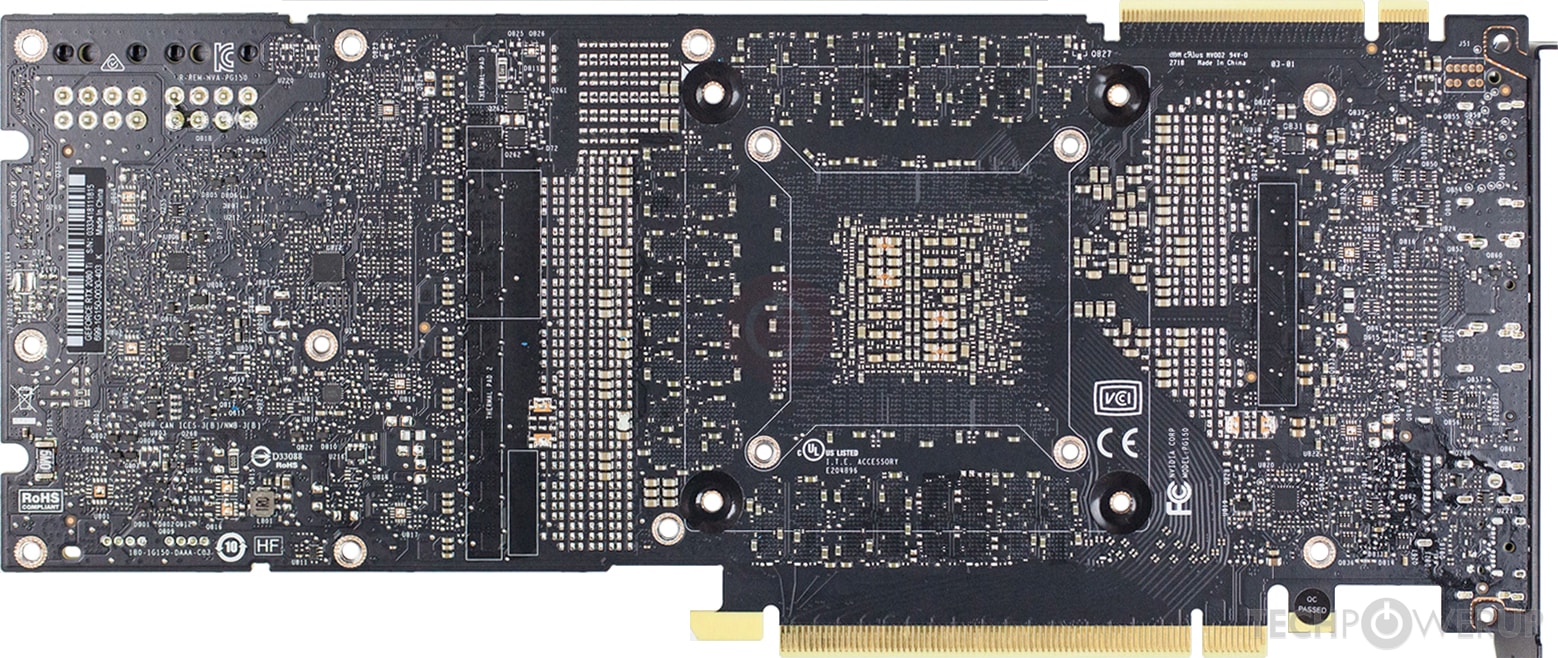

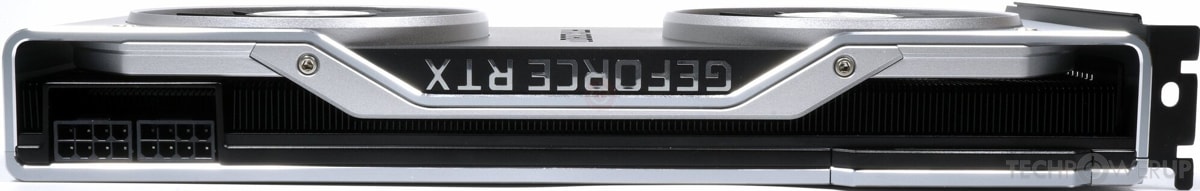

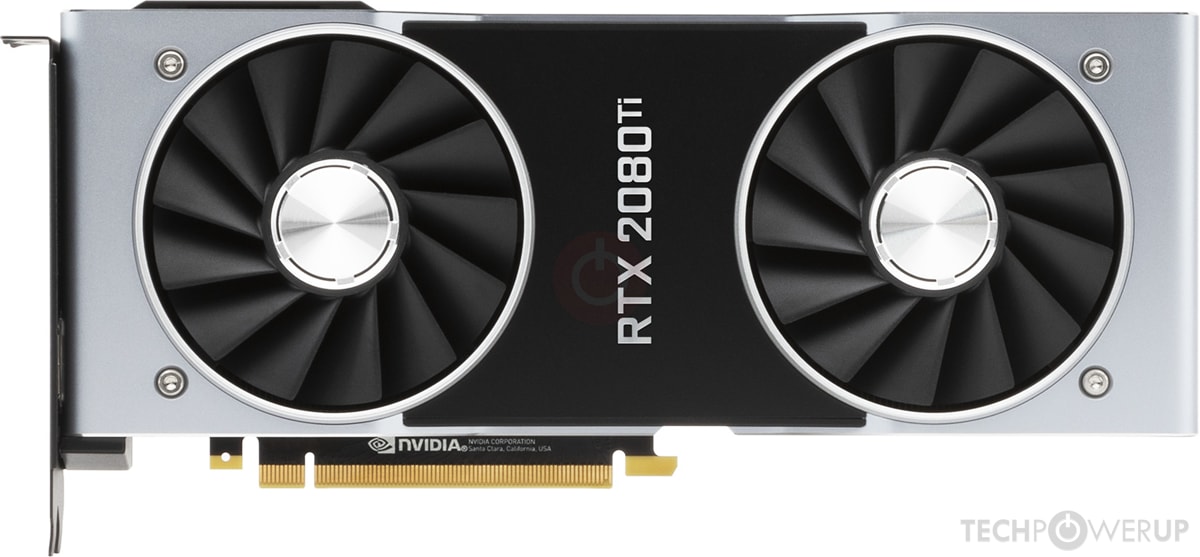

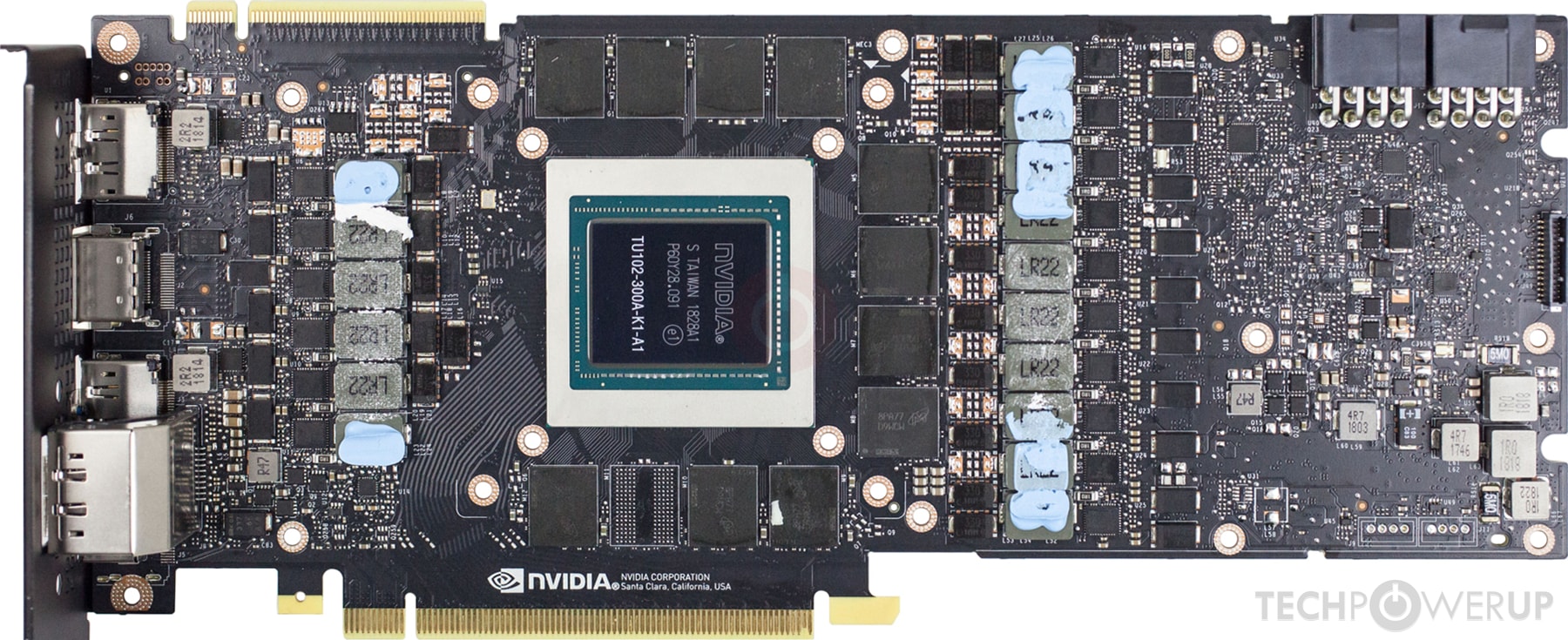

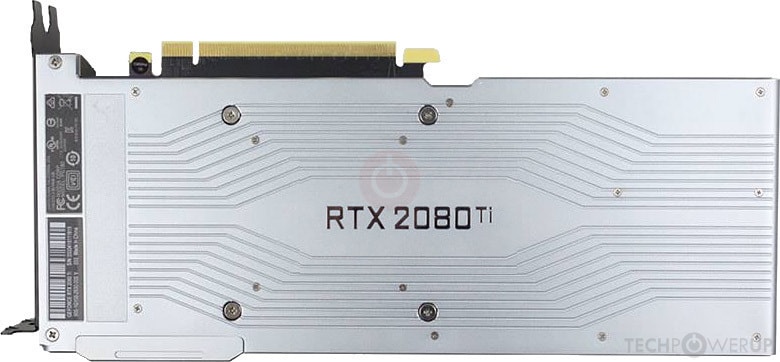

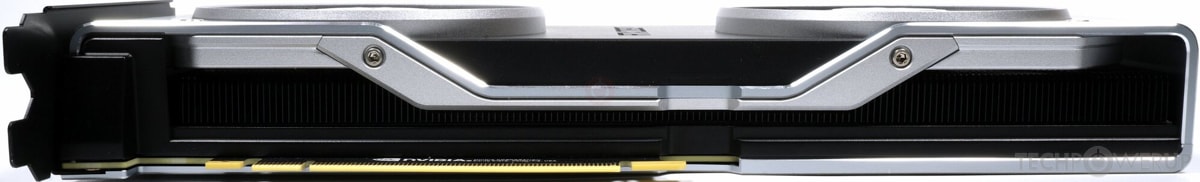

NVIDIA GeForce RTX 2080 Ti Photo NVIDIA TU102 Photo
The GeForce RTX 2080 Ti is a enthusiast-class graphics card by NVIDIA, launched in September 2018. Built on the 12 nm process, and based on the TU102 graphics processor, in its TU102-300A-K1-A1 variant, the card supports DirectX 12.0. The TU102 graphics processor is a large chip with a die area of 754 mm² and 18,600 million transistors. Unlike the fully unlocked TITAN RTX, which uses the same GPU but has all 4608 shaders enabled, NVIDIA has disabled some shading units on the GeForce RTX 2080 Ti to reach the product's target shader count. It features 4352 shading units, 272 texture mapping units and 88 ROPs. Also included are 544 tensor cores which help improve the speed of machine learning applications. The card also has 68 raytracing acceleration cores. NVIDIA has placed 11,264 MB GDDR6 memory on the card, which are connected using a 352-bit memory interface. The GPU is operating at a frequency of 1350 MHz, which can be boosted up to 1545 MHz, memory is running at 1750 MHz.
Being a dual-slot card, the NVIDIA GeForce RTX 2080 Ti draws power from 2x 8-pin power connectors, with power draw rated at 250 W maximum. Display outputs include: 1x HDMI, 3x DisplayPort, 1x USB Type-C. GeForce RTX 2080 Ti is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 267 mm in length, and features a dual-slot cooling solution. Its price at launch was 999 US Dollars.

Graphics Processor

GPU Name
TU102
GPU Variant
TU102-300A-K1-A1
Architecture
Turing
Foundry
TSMC
Process Size
12 nm
Transistors
18,600 million
Die Size
754 mm²

Graphics Card

Release Date
Sep 20th, 2018
Generation
GeForce 2000
Production
Active
Launch Price
999 USD
Bus Interface
PCIe 3.0 x16

Relative Performance

1%
1%
1%
2%
2%
2%
3%
3%
3%
4%
4%
4%
5%
5%
5%
5%
6%
6%
6%
6%
7%
7%
7%
8%
8%
8%
8%
8%
8%
9%
9%
9%
10%
10%
10%
10%
10%
10%
10%
10%
11%
11%
12%
12%
12%
13%
13%
13%
14%
15%
15%
15%
15%
16%
16%
16%
16%
17%
17%
17%
17%
18%
18%
19%
19%
20%
20%
20%
20%
20%
21%
21%
21%
23%
23%
24%
24%
24%
25%
25%
26%
26%
27%
27%
27%
30%
33%
34%
36%
36%
37%
37%
38%
38%
38%
39%
39%
39%
41%
42%
43%
43%
47%
48%
48%
52%
57%
59%
64%
64%
67%
75%
79%
81%
88%
100%
GeForce RTX 2080 Ti
Based on TPU review data: "Performance Summary" at 1920x1080

Clock Speeds

GPU Clock
1350 MHz
Boost Clock
1545 MHz
Memory Clock
1750 MHz
14000 MHz effective

Memory

Memory Size
11 GB
Memory Type
GDDR6
Memory Bus
352 bit
Bandwidth
616.0 GB/s

Render Config

Shading Units
4352
TMUs
272
ROPs
88
SM Count
68
Tensor Cores
544
RT Cores
68

Theoretical Performance

Pixel Rate
136.0 GPixel/s
Texture Rate
420.2 GTexel/s
FP16 (half) performance
26,895 GFLOPS (2:1)
FP32 (float) performance
13,448 GFLOPS
FP64 (double) performance
420.2 GFLOPS (1:32)

Board Design

Slot Width
Dual-slot
Length
10.5 inches
267 mm
TDP
250 W

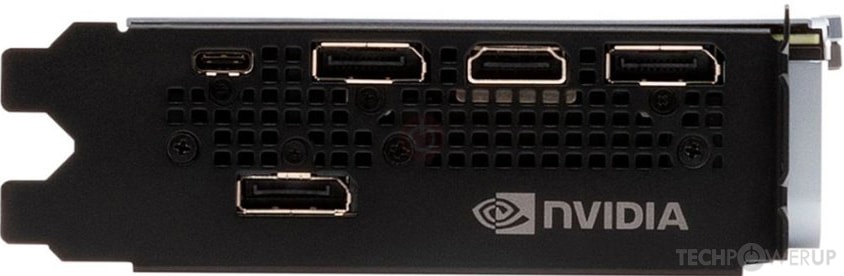

Outputs
1x HDMI
3x DisplayPort
1x USB Type-C
Power Connectors
2x 8-pin
Board Number
PG150 SKU 32

Graphics Features

DirectX
12.0 (12_1)
OpenGL
4.6
OpenCL
2.0
Vulkan
1.1.92
CUDA
7.5
Shader Model
6.3

Card Notes

TU102-300-K1-A1 are Normal Chips (no factory OC permitted).
TU102-300A-K1-A1 are Binned Chips (factory OC permitted).
Both support manual overclocking

TU102 GPU Notes

PureVideo HD: VP9
VDPAU: Feature Set I

Retail boards based on this design (90)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS Dual RTX 2080 Ti Advanced 1350 MHz 1560 MHz 1750 MHz 10.53 inches/267 mm
ASUS DUAL RTX 2080 Ti OC 1350 MHz 1635 MHz 1750 MHz 10.53 inches/267 mm
ASUS TURBO RTX 2080 Ti 1350 MHz 1545 MHz 1750 MHz 10.59 inches/269 mm
ASUS ROG STRIX RTX 2080 Ti Call of Duty BO4 1350 MHz 1545 MHz 1750 MHz 11.8 inches/300 mm
ASUS ROG STRIX RTX 2080 Ti GAMING 1350 MHz 1545 MHz 1750 MHz 11.8 inches/300 mm
ASUS ROG STRIX RTX 2080 Ti GAMING OC 1350 MHz 1650 MHz 1750 MHz 11.8 inches/300 mm
Colorful iGame RTX 2080 Ti Advanced 1350 MHz 1545 MHz 1750 MHz
Colorful iGame RTX 2080 Ti Advanced OC 1350 MHz 1635 MHz 1750 MHz
Colorful iGame RTX 2080 Ti Overseas 1350 MHz 1545 MHz 1750 MHz
Colorful iGame RTX 2080 Ti Vulcan 1350 MHz 1545 MHz 1750 MHz
Digital Alliance RTX 2080 Ti OC 1350 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm
EMTEK RTX 2080 Ti Black Edition OC 1350 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm
EVGA RTX 2080 Ti 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti Black 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti Black 1350 MHz 1545 MHz 1750 MHz 10.6 inches/269 mm
EVGA RTX 2080 Ti FTW3 1350 MHz 1545 MHz 1750 MHz Triple-slot
EVGA RTX 2080 Ti FTW3 Ultra 1350 MHz 1755 MHz 1750 MHz Triple-slot
EVGA RTX 2080 Ti HYBRID FTW3 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti HYBRID XC 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti HYDRO COPPER FTW3 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti HYDRO COPPER XC 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti XC 1350 MHz 1635 MHz 1750 MHz 10.6 inches/269 mm
EVGA RTX 2080 Ti XC Black 1350 MHz 1560 MHz 1750 MHz 10.6 inches/269 mm
EVGA RTX 2080 Ti XC Ultra 1350 MHz 1650 MHz 1750 MHz 10.6 inches/269 mm, Triple-slot
EVGA RTX 2080 Ti XC2 1350 MHz 1545 MHz 1750 MHz
EVGA RTX 2080 Ti XC2 Ultra 1350 MHz 1650 MHz 1750 MHz 10.6 inches/269 mm, Triple-slot
Gainward GameSoul RTX 2080 Ti Geek Edition 1350 MHz 1755 MHz 1750 MHz 12.28 inches/312 mm
Gainward RTX 2080 Ti Glare 1350 MHz 1545 MHz 1750 MHz 13.03 inches/331 mm
Gainward RTX 2080 Ti Glare OC 1350 MHz 1545 MHz 1750 MHz 13.03 inches/331 mm
Gainward RTX 2080 Ti Phoenix 1350 MHz 1575 MHz 1750 MHz 11.5 inches/292 mm
Gainward RTX 2080 Ti Phoenix GS 1350 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm
GALAX RTX 2080 Ti 1350 MHz 1545 MHz 1750 MHz
GALAX RTX 2080 Ti Dual Black 1350 MHz 1545 MHz 1750 MHz
GALAX RTX 2080 Ti General 1350 MHz 1545 MHz 1750 MHz 12.52 inches/318 mm
GALAX RTX 2080 Ti HOF 1350 MHz 1545 MHz 1750 MHz 13 inches/330 mm
GALAX RTX 2080 Ti HOF Limited Edition 1350 MHz 1815 MHz 1750 MHz 13 inches/330 mm
GALAX RTX 2080 Ti HOF OC LAB WC Edition 1350 MHz 1755 MHz 1750 MHz 12.6 inches/320 mm
GALAX RTX 2080 Ti OC 1350 MHz 1620 MHz 1750 MHz
GALAX RTX 2080 Ti OC White 1350 MHz 1620 MHz 1750 MHz
GALAX RTX 2080 Ti SG Edition 1350 MHz 1680 MHz 1750 MHz 12.13 inches/308 mm
GIGABYTE AORUS RTX 2080 Ti 1350 MHz 1695 MHz 1750 MHz 11.42 inches/290 mm, 3x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE AORUS RTX 2080 Ti XTREME 1350 MHz 1770 MHz 1750 MHz 11.42 inches/290 mm, 3x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE AORUS RTX 2080 Ti XTREME WaterForce WB 1350 MHz 1755 MHz 1767 MHz 3x HDMI 3x DisplayPort 1x USB Type-C
GIGABYTE RTX 2080 Ti GAMING OC 1350 MHz 1650 MHz 1750 MHz 11.04 inches/280 mm
GIGABYTE RTX 2080 Ti Turbo 1350 MHz 1545 MHz 1750 MHz
GIGABYTE RTX 2080 Ti Turbo OC 1350 MHz 1545 MHz 1750 MHz
GIGABYTE RTX 2080 Ti WindForce 1350 MHz 1545 MHz 1750 MHz 11.04 inches/280 mm
GIGABYTE RTX 2080 Ti WindForce OC 1350 MHz 1620 MHz 1750 MHz 11.04 inches/280 mm
Inno3D iChill RTX 2080 Ti Black 1350 MHz 1545 MHz 1750 MHz 10.55 inches/268 mm
Inno3D iChill RTX 2080 Ti Frostbite 1350 MHz 1695 MHz 1750 MHz 10.43 inches/265 mm
Inno3D iChill RTX 2080 Ti X3 JEKYLL 1350 MHz 1545 MHz 1750 MHz 11.81 inches/300 mm
Inno3D RTX 2080 Ti X2 Gaming OC 1350 MHz 1590 MHz 1750 MHz 10.55 inches/268 mm
Inno3D RTX 2080 Ti X3 Gaming OC 1350 MHz 1590 MHz 1750 MHz 10.7 inches/272 mm
KFA2 RTX 2080 Ti 1350 MHz 1545 MHz 1750 MHz
KFA2 RTX 2080 Ti Dual Black 1350 MHz 1545 MHz 1750 MHz
KFA2 RTX 2080 Ti HOF 1350 MHz 1635 MHz 1750 MHz 13 inches/330 mm
KFA2 RTX 2080 Ti OC 1350 MHz 1620 MHz 1750 MHz
KFA2 RTX 2080 Ti OC White 1350 MHz 1620 MHz 1750 MHz
KFA2 RTX 2080 Ti SG Edition 1350 MHz 1545 MHz 1750 MHz 12.13 inches/308 mm
KUROTOSHIKOU RTX 2080 Ti WHITE 1350 MHz 1635 MHz 1750 MHz
Leadtek WinFast RTX 2080 Ti 1350 MHz 1545 MHz 1750 MHz 10.55 inches/268 mm
Leadtek WinFast RTX 2080 Ti Hurricane 1350 MHz 1635 MHz 1750 MHz 11.93 inches/303 mm
Manli RTX 2080 Ti Blower 1350 MHz 1545 MHz 1750 MHz
Manli RTX 2080 Ti Gallardo 1350 MHz 1635 MHz 1750 MHz 12.36 inches/314 mm
MAXSUN RTX 2080 Ti Wind OC 1350 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm
MAXSUN RTX 2080 Ti Wind OC V2 1350 MHz 1635 MHz 1750 MHz 12.36 inches/314 mm
MSI RTX 2080 Ti DUKE 1350 MHz 1635 MHz 1750 MHz 12.36 inches/314 mm
MSI RTX 2080 Ti DUKE OC 1350 MHz 1665 MHz 1750 MHz 12.36 inches/314 mm
MSI RTX 2080 TI GAMING TRIO 1350 MHz 1635 MHz 1750 MHz 12.87 inches/327 mm
MSI RTX 2080 Ti GAMING X TRIO 1350 MHz 1755 MHz 1750 MHz 12.87 inches/327 mm
MSI RTX 2080 Ti Sea Hawk EK X 1350 MHz 1755 MHz 1750 MHz 12 inches/305 mm
MSI RTX 2080 Ti Sea Hawk X 1350 MHz 1755 MHz 1750 MHz 10.55 inches/268 mm
MSI RTX 2080 Ti VENTUS 1350 MHz 1545 MHz 1750 MHz 10.55 inches/268 mm
MSI RTX 2080 Ti VENTUS OC 1350 MHz 1635 MHz 1750 MHz 10.55 inches/268 mm
NVIDIA GeForce RTX 2080 Ti Founders Edition 1350 MHz 1635 MHz 1750 MHz
Palit RTX 2080 Ti Dual 1350 MHz 1545 MHz 1750 MHz 11.5 inches/292 mm
Palit RTX 2080 Ti GamingPro 1350 MHz 1575 MHz 1750 MHz 11.5 inches/292 mm
Palit RTX 2080 Ti GamingPro OC 1350 MHz 1650 MHz 1750 MHz 11.5 inches/292 mm
PNY RTX 2080 Ti Blower 1350 MHz 1545 MHz 1750 MHz
PNY XLR8 RTX 2080 Ti Gaming OC 1350 MHz 1635 MHz 1750 MHz 12.35 inches/314 mm
Yeston RTX 2080 Ti Deluxe Edition 1350 MHz 1635 MHz 1750 MHz 12.28 inches/312 mm
ZOTAC RTX 2080 Ti AMP 1350 MHz 1665 MHz 1750 MHz 12.13 inches/308 mm
ZOTAC RTX 2080 Ti AMP Extreme 1350 MHz 1815 MHz 1800 MHz 12.13 inches/308 mm
ZOTAC RTX 2080 Ti AMP Extreme Core 1350 MHz 1755 MHz 1800 MHz 12.13 inches/308 mm
ZOTAC RTX 2080 Ti AMP MAXX 1350 MHz 1665 MHz 1750 MHz 11.73 inches/298 mm
ZOTAC RTX 2080 Ti PGF Extreme OC14 1350 MHz 1755 MHz 1750 MHz 12.17 inches/309 mm
ZOTAC RTX 2080 Ti PGF Extreme OC8 1350 MHz 1665 MHz 1750 MHz 12.17 inches/309 mm
ZOTAC RTX 2080 Ti Triple Fan 1350 MHz 1605 MHz 1750 MHz 12.13 inches/308 mm
ZOTAC RTX 2080 Ti Twin Fan 1350 MHz 1545 MHz 1750 MHz 10.55 inches/268 mm
ZOTAC RTX 2080 Ti X-Gaming OC 1350 MHz 1575 MHz 1750 MHz 12.24 inches/311 mm
