AMD Zen-based 8-core Desktop CPU Arrives in 2016, on Socket FM3

In what is a confirmation that AMD has killed socket AM3+ and its 3-chip platform, a leaked slide that's part of a larger press-deck addressing investors, tells us that the company is planning to launch a high-performance desktop processor targeting enthusiasts, based on its next-generation "Zen" architecture, in 2016. Our older articles detail the Zen CPU core design, and the way in which AMD will build multi-core CPUs with it. This processor will be codenamed "Summit Ridge," and will be a CPU, and not an APU as previously reported. In AMD-speak, what sets a CPU apart from an APU is its lack of integrated graphics.

AMD "Summit Ridge" will be an 8-core CPU built on the 14 nanometer silicon fab process. It will feature eight "Zen" cores, with 512 KB of L2 cache per core, 16 MB of L3 cache, with 8 MB shared between two sets of four cores, each; a dual-channel integrated memory controller that likely supports both DDR3 and DDR4 memory types; and an integrated PCI-Express gen 3.0 root complex, with a total of 22 lanes. We can deduce this from the fact that "Summit Ridge" will be built in the same upcoming socket FM3 package, which the company's "Bristol Ridge" Zen-based APU will be built on. "Summit Ridge" will hence be more competitive with Intel's 6th generation Core "Skylake" processors, such as the i7-6700K and i5-6600K, than the company's "Broadwell-E" HEDT platform.
The mainstream APU based on Zen, codenamed "Bristol Ridge," features four Zen cores, 512 KB of L2 cache, 8 MB of shared L3 cache, an integrated GPU based on AMD's "Greenland" class stream processors, and a similar uncore loadout as "Summit Ridge."
Add your own comment

73 Comments on AMD Zen-based 8-core Desktop CPU Arrives in 2016, on Socket FM3

#1
hojnikb
Well, AM1 died quickly...
Posted on Reply
#2
bobalazs
If the tendency remains, this will drag behind core i's.
Posted on Reply
#3
Kyrios74
Can socket FM3 read both SummitRidge & BrisotlRidge CPU on the same motherboard?
Posted on Reply
#4
btarunr
Editor & Senior Moderator
"Kyrios74 said:
Can socket FM3 read both SummitRidge & BrisotlRidge CPU on the same motherboard?
Yes, but the display connectors won't work with Summit Ridge (no integrated graphics).
Posted on Reply
#5
hojnikb
Actually, it does. As you can see from the slides, there will only be BGA parts, no socketed ones.

So much from future upgradeability.
Posted on Reply
#6
Dragonsmonk
"hojnikb said:
Well, AM1 died quickly...
Unfortunately so - however, they seem to go back to SOC only. Wish they would improve on the concept of AM1...
Posted on Reply
#7
Frick
Fishfaced Nincompoop
"Dragonsmonk said:
Unfortunately so - however, they seem to go back to SOC only. Wish they would improve on the concept of AM1...
Thiiiiiis a million times. Imagine an AM1 nanoITX board...
Posted on Reply
#8
FordGT90Concept
"I go fast!1!11!1!"
8-core, 16 thread? I wish I could wait until 2016 to upgrade now because AMD hath piqued my interest.

14nm could actually prove to be competitive with Intel. If they can pull it off, this might be the big break AMD desperately needs. I can't help but think maybe Sony, Microsoft, and now even Nintendo switching to AMD may have made this possible.
Posted on Reply
#9
RejZoR
8 core, 16 thread CPU, well I'm interested in that. I'd like to have AMD once again in my PC and this just might be it.
Posted on Reply
#10
NC37
"FordGT90Concept said:
8-core, 16 thread? I wish I could wait until 2016 to upgrade now because AMD hath piqued my interest.

14nm could actually prove to be competitive with Intel. If they can pull it off, this might be the big break AMD desperately needs. I can't help but think maybe Sony, Microsoft, and now even Nintendo switching to AMD may have made this possible.
It did. Consoles shifting from triple core to 8 + needing to function optimally to counter their weak CPUs, does have an effect. Already seeing it with GTAV. I expect more titles to do similar, especially after Win 10/DX12.

But even more, AMD's pushes towards multicore seem to be paying off. With DX12 and Windows 10 showing boosts. AMD was just years early. Intel had IPC till they were blue in the face but they did nothing but quad core outside of server/workstation CPUs. While AMD flopped about pushing higher. Course they kinda had to. They don't have the strength Intel has. All they could do was build the foundations and prep for a time when it would matter.

However, had they stayed the course with BD, I doubt they'd be looking very well for next year. No doubt Intel is going to have something to counter. I don't think they'd take 8 core/16 thread competition lying down. But damn if AMD is good on price...holy video encode Batman!
Posted on Reply
#11
blanarahul
The mainstream desktop chips are SoCs and they share the same socket with the high performance GPU-less FX chips. Does this spell the end of southbridge/chipset? If so how does it affect motherboard manufacturers?
Posted on Reply
#12
The Von Matrices
"FordGT90Concept said:
14nm could actually prove to be competitive with Intel. If they can pull it off, this might be the big break AMD desperately needs.
Unfortunately, I tend to be pessimistic about AMD, who has had trouble meeting launch dates time and time again. Remember that this is AMD first 14nm product, and it intended to compete with Intel's second generation 14nm product. AMD has a lot more opportunities for delays than Intel due to AMD using an unproven fabrication process. If AMD doesn't meet its launch schedule, then the company will find itself competing against Cannonlake/10nm, which makes it ever so harder for the CPU to succeed.
Posted on Reply
#13
Naito
I'm not much of an AMD guy, but I can't help but be a little excited.
Posted on Reply
#14
$ReaPeR$
i hope this is as good as it looks..
Posted on Reply
#15
btarunr
Editor & Senior Moderator
"hojnikb said:
Actually, it does. As you can see from the slides, there will only be BGA parts, no socketed ones.

So much from future upgradeability.

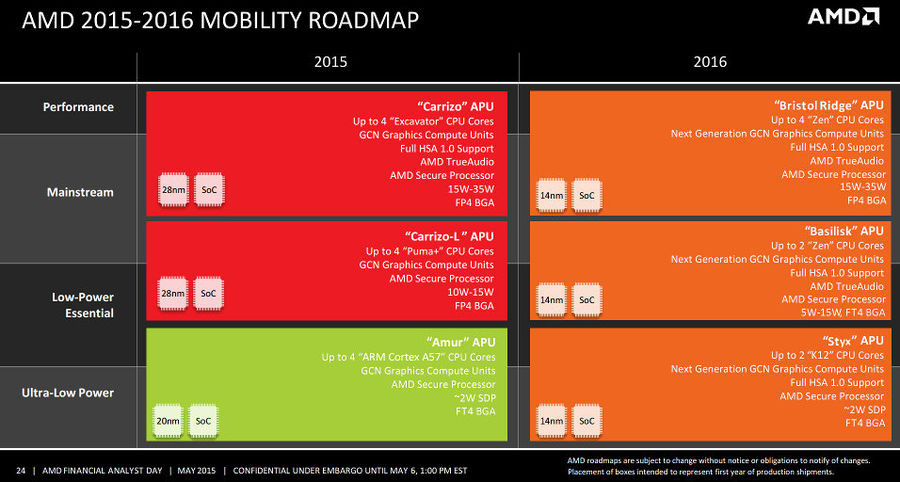

Actually, it doesn't. You're looking at the second slide, which covers notebook APUs. The first one shows the desktop lineup. FM3 is an FCPGA socket.
Posted on Reply
#16
hojnikb
"btarunr said:
Actually, it doesn't. You're looking at the second slide, which covers notebook APUs. The first one shows the desktop lineup. FM3 is an FCPGA socket.
Look closer. You'll see that basilisk is FT4 BGA only
Posted on Reply
#17
Frick
Fishfaced Nincompoop
"btarunr said:
Actually, it doesn't. You're looking at the second slide, which covers notebook APUs. The first one shows the desktop lineup. FM3 is an FCPGA socket.
"hojnikb said:
Look closer. You'll see that basilisk is FT4 BGA only
You're speaking about different things dudes.

Looks like there will only be one APU for FM3.
Posted on Reply
#18
btarunr
Editor & Senior Moderator
"hojnikb said:
Look closer. You'll see that basilisk is FT4 BGA only
Who is talking about Basilisk? I was replying to post #4 on whether you can use Summit Ridge and Bristol Ridge on the same motherboard,
Posted on Reply
#19
mroofie
"RejZoR said:
8 core, 16 thread CPU, well I'm interested in that. I'd like to have AMD once again in my PC and this just might be it.
Rumor only
Might not happen :)
Posted on Reply
#20
Frick
Fishfaced Nincompoop
"mroofie said:
Rumor only
Might not happen :)
The first leak (or whatever it was) spoke about SMT, and not having SMT sounds pretty daft in this age.
Posted on Reply
#21
RejZoR
I'm hoping it will be a 8 core 16 thread one...
Posted on Reply
#22
hojnikb
"RejZoR said:
I'm hoping it will be a 8 core 16 thread one...
Why stop there ? :)
32 core 64 thread monstaaaa :)
Posted on Reply
#23
Captain_Tom
"hojnikb said:
Why stop there ? :)
32 core 64 thread monstaaaa :)

Ya know I love AMD, but that picture always makes me laugh lol. Both the Y and X axis are "Cores".
Posted on Reply
#24
Frick
Fishfaced Nincompoop
Posted on Reply
#25
bubbleawsome
Funny thing is, in well multithreaded games the fx chips are still competing with my i5. DX12 could really add to this.
Posted on Reply
